Product ID: R7 FKP

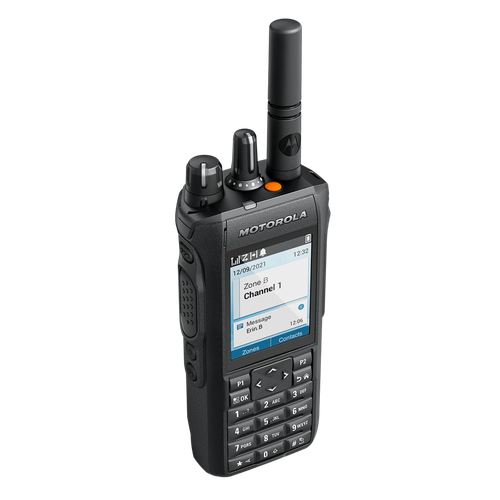

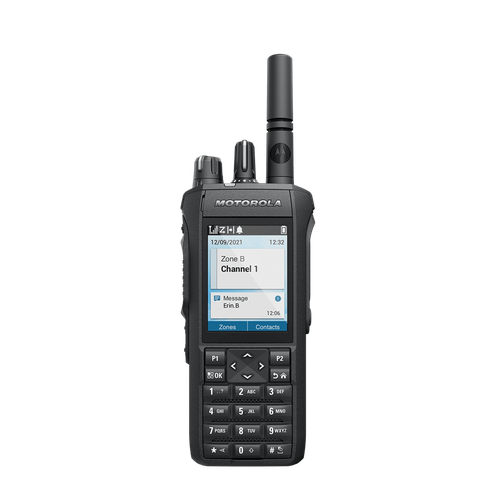

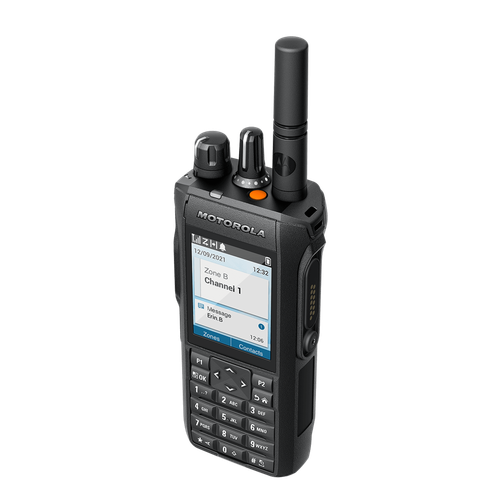

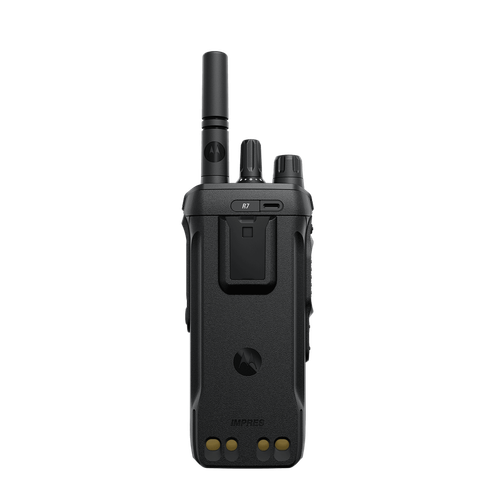

The MOTOTRBO R7 FKP (Full Keypad) is a premium digital DMR portable radio featuring a full keypad, a 2.4" QVGA display, AI-trained adaptive dual-microphone noise cancellation, Bluetooth 5.2, dual-band Wi-Fi, and IP66/IP68 ingress protection.
Product features:
DMR – supports analogue, digital DMR Tier II/III, and 5-Tone signalling with optional AES256 encryption
Full numeric keypad and 2.4" QVGA (320 x 240 px) color screen supporting up to 10 lines of text
Advanced audio architecture featuring AI-trained noise suppression, acoustic feedback suppression, and up to 107 phons loudness
Modern wireless suite: Wi-Fi 2.4/5.0 GHz with WPA3, Bluetooth 5.2, and multi-constellation GNSS (GPS/GLONASS/BEIDOU/GALILEO)
Extreme durability: IP68 (submersion up to 2 m for 2 hours), IP66 (high-pressure water jet resistance), and disinfectant-resistant housing • Product description
The MOTOTRBO R7 FKP represents the pinnacle of digital portable radio technology, built for professionals who demand maximum control in mission-critical environments. Equipped with a full numeric keypad and a large 2.4" QVGA display, it enables users to compose freeform text messages, manage contact lists, and navigate work order tickets effortlessly. The intuitive user interface displays key operational alerts at a glance, keeping workers informed without delay.
Engineered to deliver exceptional audio clarity in the harshest environments, the R7 FKP utilizes AI-trained noise cancellation paired with dual front/rear microphones to eliminate extreme background noise. Its forward-facing speaker delivers 102 phons out of the box, with a programmable Extra Loud Mode boosting output up to 107 phons. On-board Bluetooth 5.2, dual-band Wi-Fi (with WPA3 security), and multi-constellation GNSS provide seamless data integration and location dispatching.
Built to withstand extreme field conditions, the R7 FKP carries dual IP66 and IP68 water/dust ingress certifications, surviving high-pressure water jets and submersion up to 2 meters for 2 hours. Its housing is specifically formulated to withstand repeated decontamination with medical-grade disinfectants. Enhanced safety capability includes Lone Worker, Man Down/Fall Alert, an integrated accelerometer.
The MOTOTRBO R7 FKP is designed for public safety agencies, emergency response teams, heavy industrial facilities, airport operations, and maritime environments.
Emergency response & public safety: rapid text messaging via full keypad, instant PTT, and IP68 waterproof reliability.
Heavy manufacturing & oil/gas: crystal-clear communication up to 107 phons.
Airports, ports & railways: real-time GNSS location dispatching, Bluetooth 5.2 sensor integration, and wide-area Capacity Max trunking.
• Specification
Display Type
2.4" QVGA (320 x 240 px) color display, up to 10 lines of text
Keypad
Full numeric keypad (FKP)
Channel Capacity
1000
Dimensions (H x W x D) with 2200 mAh Slim IMPRES Li-Ion Battery (PMNN4807)
131,8 x 56 x 34,7 mm
Weight with 2200 mAh Slim IMPRES Li-Ion Battery (PMNN4807)
316 g
Nominal Power Supply
7,5 V
Battery Life (5/5/90 duty cycle) – 2200 mAh Battery (PMNN4807)
Digital: 20 hrs / Analogue: 15 hrs
Battery Life (5/5/90 duty cycle) – 2450 mAh Battery (PMNN4808)
Digital: 22 hrs / Analogue: 17 hrs
Battery Life (5/5/90 duty cycle) – 2850 mAh Battery (PMNN4809)
Digital: 26 hrs / Analogue: 19.5 hrs
Channel Spacing
12,5 kHz / 20 kHz / 25 kHz
Frequency Stability
± 0,5 ppm
Digital Vocoder Type
AMBE+2™
Digital Protocol (ETSI standards)
ETSI TS 102 361-1, -2, -3, -4 (DMR Tier II, DMR Tier III)
Wi-Fi Connectivity
Wi-Fi 5 / IEEE 802.11a/b/g/n/ac (2.4 GHz, 5 GHz) supporting WPA2, WPA3, and 802.11k/v/r roaming
Bluetooth Module
Version 5.2 (Class 2, 10 m range), supported profiles: HSP, SPP, PAN, GATT, Bluetooth LE
GNSS Receiver
GPS, GLONASS, BEIDOU, GALILEO (horizontal accuracy < 5 m, cold start < 60 s, hot start < 10 s)
Frequency Range
VHF: 136–174 MHz or UHF: 400–527 MHz
RF Output Power (High / Low)
VHF: 5 W / 1 W or UHF: 4 W / 1 W
Conducted / Radiated Emissions (ETSI/TIA603E)
< 1 GHz: -36 dBm > 1 GHz: -30 dBm
Adjacent Channel Power
12.5 kHz channel: 60 dB 20/25 kHz channel: 70 dB
Analogue Sensitivity (12 dB SINAD)
0,16 uV
Digital Sensitivity (5% BER)
0,14 uV
Intermodulation
65 dB (ETSI) / 70 dB (TIA603E)
Adjacent Channel Selectivity (ETSI/TIA603A-1T / TIA603D-2T)
12.5 kHz channel: 60 dB / 45 dB 20/25 kHz channel: 70 dB / 70 dB
Spurious Rejection (ETSI/TIA603E)
70 dB
Speech Loudness (ISO532B)
Default Maximum: 102 phon @ 30 cm Extra Loud Mode (Level 3): 107 phon @ 30 cm
Audio Output Power (Rated / Max)
1 W / 3 W
Audio Distortion @ Rated Audio
≤ 1,5%
Hum and Noise
12.5 kHz channel: -40 dB 20/25 kHz channel: -45 dB
Conducted Spurious Emissions (ETSI/TIA603E)
< 1 GHz: <-57 dBm > 1 GHz: <-47 dBm
Military Standards MIL-STD 810C/D/E/F/G/H
Full compliance for low/high pressure, temperature, thermal shock, solar radiation, rain, humidity, salt fog, dust, sand, vibration, and shock
Ingress Protection (dust and water)
IP68 (submersion up to 2 m for 2 hours) and IP66 (high-pressure water jet resistance) per IEC 60529
Chemical Resistance
Housing resistant to commercial disinfectants and decontamination substances
Maritime Certification
UHF models certified to EN 300 720 V2.1.1 and IEC/EN 60945:2002 for maritime vessel use
Operating Temperature
-30°C to +60°C (radio) / -20°C to +60°C (with battery)
Storage Temperature
-40°C to +85°C
Electrostatic Discharge
IEC 61000-4-2 level 4
