Product ID: DP3441e

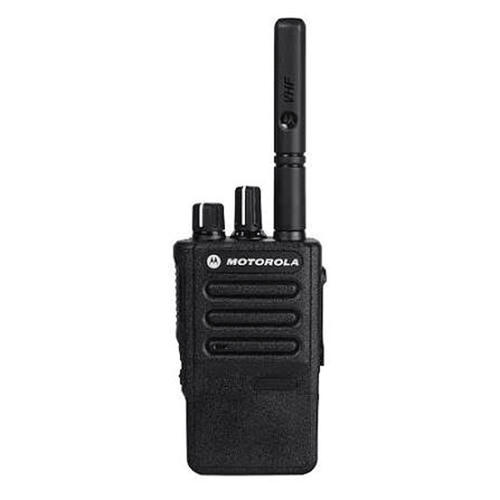

The MOTOTRBO DP3441e digital two-way radio is a compact, ETSI DMR-compliant transceiver featuring 32 channels, integrated Bluetooth 4.0, Wi-Fi, multi-constellation GNSS, and comprehensive support for both analogue and digital trunked systems.
Product features:
DMR – analogue and digital operation with support for Direct Mode, IP Site Connect, Capacity Plus, and Capacity Max networks
Multi-constellation GNSS receiver (GPS and GLONASS) for enhanced location tracking accuracy
Built-in Bluetooth 4.0 module for wireless audio, data transfer, and indoor location tracking
Integrated Wi-Fi enabling remote over-the-air software updates • Product description
The MOTOTRBO DP3441e is a next-generation digital radio engineered for mobile professionals who require powerful communication in a small form factor. Its tough, compact body and light weight (254 g with battery), combined with an efficient short antenna, ensure convenient portability without impeding movement.
Equipped with Bluetooth 4.0, the DP3441e enables wireless audio accessory pairing and seamless data sharing. Integrated Wi-Fi capabilities allow over-the-air software updates without taking devices off the field. Multi-constellation GNSS (GPS/GLONASS) delivers accurate outdoor location tracking, while Bluetooth support powers indoor location positioning.
Worker safety is prioritized with a dedicated orange emergency button, Transmit Interrupt functionality to clear channels instantly, and an integrated accelerometer for optional Man Down fall detection. Privacy is maintained through robust encryption options including Basic, Enhanced, and AES256 encryption.
Built to withstand harsh environments, the DP3441e features IP68 dust and water intrusion rating alongside MIL-STD 810 durability. High-grade audio technologies such as IMPRES™ audio, Intelligent Audio, and optional SINC+ noise cancellation ensure clear, intelligible voice calls even in high-noise surroundings.
The MOTOTRBO DP3441e is designed for mobile workforce teams, security personnel, field engineers, and managers who need a discreet, rugged radio with advanced connectivity and tracking capabilities.
Security and mobile teams: lightweight and compact carrying with wireless Bluetooth headset support.
Harsh operational environments: IP68 submersion protection and MIL-STD 810 military-grade durability.
Safety-critical operations: real-time GNSS/indoor tracking, Man Down accelerometer, and instant emergency alerts.
• Specification
Channel Capacity
32
Dimensions (H x W x D) with 1600mAh Li-ion Battery
100 x 56 x 30 mm
Weight with 1600mAh Li-ion Battery
254 g
Nominal Power Supply
7,5 V
Battery Life (5/5/90 duty cycle)
Digital: 16.0 hrs / Analogue: 12.0 hrs
Channel Spacing
12,5 kHz / 20 kHz / 25 kHz
Frequency Stability
± 0,5 ppm
Digital Vocoder Type
AMBE+2™
Digital Protocol (ETSI standards)
ETSI TS 102 361-1, -2, -3
Wi-Fi Connectivity
IEEE 802.11b/g/n, security: WPA, WPA-2, WEP (max 64 SSIDs)
Bluetooth Module
Version 4.0, Class 2 (10 m range), supported profiles: HSP, SPP, Motorola fast push-to-talk
GNSS Receiver
GPS, GLONASS (horizontal accuracy < 5 m, cold start < 60 s, hot start < 10 s)
Frequency Range
VHF: 136–174 MHz or UHF: 403–527 MHz
RF Output Power (low / high)
VHF: 1 W / 5 W or UHF: 1 W / 4 W
4FSK Digital Modulation
12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W
Conducted / Radiated Spurious Emissions (TIA603D)
< 1 GHz: -36 dBm > 1 GHz: -30 dBm
Adjacent Channel Power
12.5 kHz channel: 60 dB 20/25 kHz channel: 70 dB
Analogue Sensitivity (12 dB SINAD)
0,16 uV
Digital Sensitivity (5% BER)
0,14 uV
Intermodulation (TIA603D)
70 dB
Adjacent Channel Selectivity (TIA603A-1T)
12.5 kHz channel: 60 dB 20/25 kHz channel: 70 dB
Adjacent Channel Selectivity (TIA603D-2T)
12.5 kHz channel: 45 dB 20/25 kHz channel: 70 dB
Spurious Rejection (TIA603D)
70 dB
Rated Audio
0,5 W
Audio Distortion @ Rated Audio
3%
Hum and Noise
12.5 kHz channel: -40 dB 20/25 kHz channel: -45 dB
Conducted Spurious Emissions (TIA603D)
-57 dBm
Military Standards MIL-STD 810C/D/E/F/G
Low/high pressure, low/high temp, thermal shock, solar radiation, rain, humidity, salt fog, dust, vibration, shock
Operating Temperature
-30°C to +60°C (radio only; battery operation down to -10°C)
Storage Temperature
-40°C to +85°C
Ingress Protection (dust and water)
IEC 60529 - IP68 (2 m for 2 hrs)
Electrostatic Discharge
IEC 61000-4-2 level 4
Packaging Test
MIL-STD 810D and E
