Product ID: MXP7000

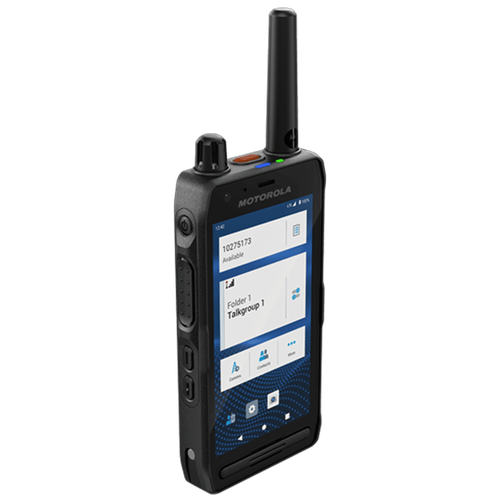

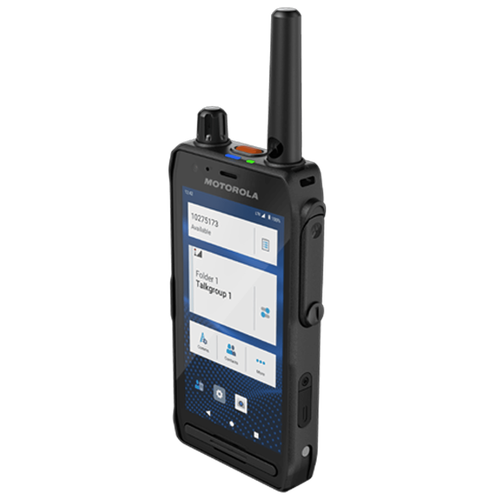

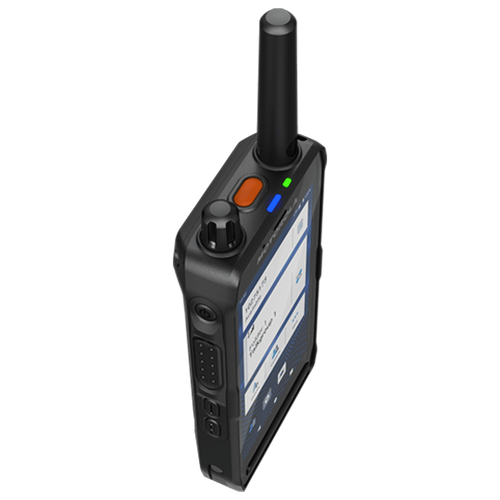

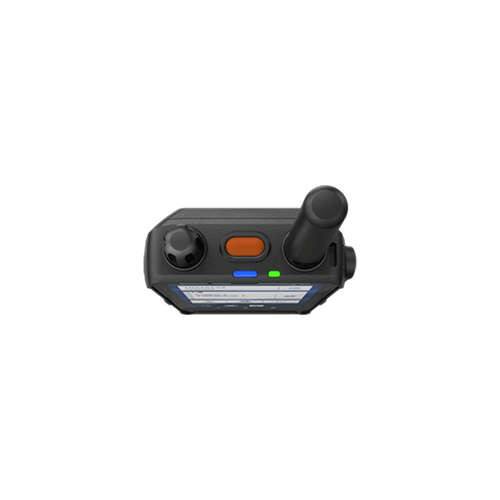

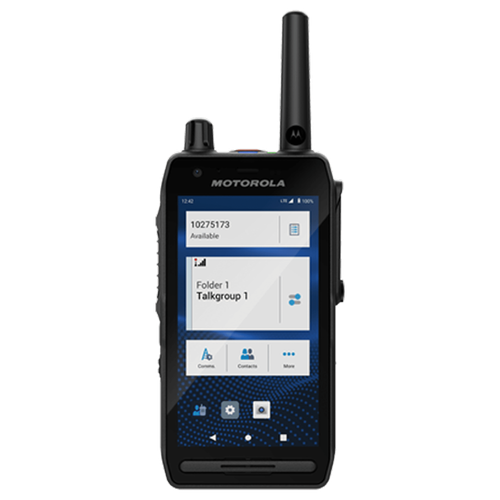

The Motorola MXP7000 is a mission-critical converged portable device delivering both TETRA trunked voice and 4G LTE broadband communications inside a rugged, Android 13 powered handheld with a 5.0" touchscreen, 13 MP camera, HSM encryption, and IP68 protection.
Product features:
TETRA + LTE – converged mission-critical device combining reliable TETRA voice/data with 4G LTE broadband and Android 13 application platform
5.0" capacitive Corning Gorilla Glass display built for disposable/combat glove touch control and Night Vision Goggle (NVG) mode
Integrated 13 MP rear camera with LED flash and 8 MP front camera supporting live video streaming over LTE
Hardened Android 13 Non-GMS OS featuring TEE hardware encryption, AES256 File-Based Encryption, IPSec VPN, and optional E2EE HSM
Military-grade ruggedness certified to MIL-STD 810H standards and IP68 dust/water submersion rating • Product description
The Motorola MXP7000 is a state-of-the-art converged portable device designed for frontline teams requiring mission-critical voice alongside broadband data. Running on a hardened Android 13 platform, it enables personnel to execute custom workforce applications, manage real-time situational awareness data, and stream high-definition video over 4G LTE networks without carrying separate smartphones or tablets.
Featuring a 5.0-inch Corning Gorilla Glass display, the MXP7000 is engineered for seamless operation in severe conditions, including touch control with combat gloves. A specialized Night Vision Goggle (NVG) mode dims display luminance for covert military or tactical nighttime operations. Its intelligent 3+1 audio architecture utilizes adaptive multi-microphone beam-forming to suppress background noise and wind, delivering up to 99 Phon of loud audio.
Built to protect critical data, the MXP7000 incorporates multi-layered security: Android AES256 file encryption, TEE hardware key storage, TETRA Air Interface Encryption (AIE), and optional hardware-based End-to-End Encryption (AES128/AES256 HSM). A field-swappable 5600 mAh IMPRES 2 battery ensures extended shift performance. Fleet deployment is streamlined through over-the-air programming (OTAP) over Wi-Fi and LTE via the ITM solution.
The Motorola MXP7000 converged device is designed for tactical commanders, military units, border patrol, police officers, emergency medical services, and critical infrastructure engineers.
Tactical & military operations: instant TETRA voice combined with broadband mapping, live video feeds, and NVG display compatibility.
First responders & public safety: glove-friendly 5-inch touchscreen, high-capacity 5600 mAh swappable battery, and WAVE PTX broadband PTT.
Transportation & utilities: local Wi-Fi Hotspot tethering for external tablets and DMO repeater coverage bridging in dead zones.
• Specification
Operating System
Android™ 13 (Non-GMS release)
Display
5.0" capacitive touchscreen (1280 x 720 px) with Corning Gorilla Glass, glove touch support, NVG (Night Vision Goggle) mode
Memory
4 GB RAM / 64 GB Internal Storage + MicroSD card slot
SIM Slots
TETRA SIM: Mini SIM (2FF) / LTE SIM: Nano SIM (4FF)
Cameras
Rear: 13 MP with integrated LED flash / Front: 8 MP (1080p @ 60 fps video recording)
Dimensions (H x W x D)
210 x 80 x 29.9 mm (with antenna) / 150 x 80 x 29.9 mm (without antenna)
Weight
440 g (with battery and antenna)
Battery Capacity
5600 mAh IMPRES 2 (field-swappable)
Broadband LTE / 3G / 2G Bands
LTE: B1, B2, B3, B4, B5, B7, B8, B19, B20, B26, B28 3G: B1, B2, B4, B5, B8 / 2G: 850, 900, 1800, 1900 MHz
Wi-Fi Connectivity
IEEE 802.11a/b/g/n/ac (2.4 GHz, 5 GHz)
Bluetooth Module
Version 5.1 (Data transfer, GATT, ATT, GAP, SPP, PAN, OPP profiles)
GNSS Receiver
GPS, aGPS, Galileo, GLONASS, BeiDou (< 5 m accuracy)
Ports
GCAI-mini, USB-C
Frequency Bands
380–430 MHz
RF Transmit Power Class
Class 3L (1.8 W), Class 4 (1.0 W)
Receiver Static Sensitivity
-116 dBm (guaranteed) / -118 dBm (typical)
Receiver Dynamic Sensitivity
-107 dBm (guaranteed) / -109 dBm (typical)
Repeater Mode
ETSI Type 1A DMO Repeater (voice, tones, status, and SDS messaging)
Audio Power (Rated / Max)
2 W / 3 W (< 1% distortion)
Max Speech Loudness
99 Phon
Microphone Architecture
3 dedicated microphones + 1 loudspeaker functioning as microphone with beam-forming noise & wind suppression
Air Interface Encryption
TEA1, TEA2, TEA3 (Class 1, 2, 3, 3G)
End-to-End Encryption (E2EE)
AES128 or AES256 for voice and data via optional HSM module or SIM-based BSI encryption
Android Operating System Security
AES256 File-Based Encryption (Data-at-Rest), IPSec VPN (Data-in-Transit), SELinux access control, TEE key storage, Trusted Boot
Military Standards MIL-STD 810H
Full compliance for low/high pressure, temperature, thermal shock, solar radiation, humidity, salt fog, blowing sand, vibration, and shock (Method 516.8)
Ingress Protection (dust and water)
IEC 60529: IP68 (black housing model) / IP67 (green housing model)
Operating Temperature
-20°C to +60°C
Storage Temperature
-40°C to +85°C
