Product ID: DEUTA ENG / EZG / EQG / EGS

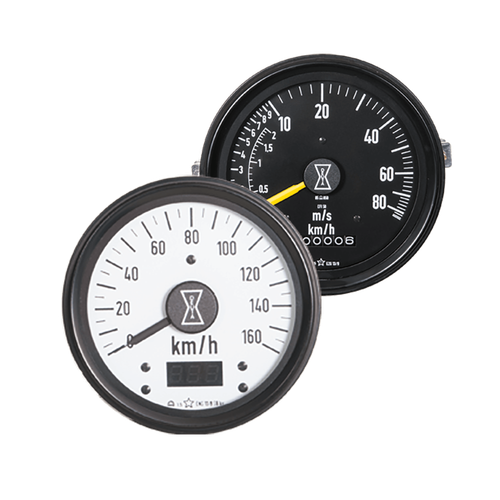

DEUTA railway indicating units are reliable panel meters designed for displaying speed, voltage, current, and traction force in rail vehicles. Featuring high resistance to extreme environmental conditions, they support control via voltage, current (including 4-20 mA life zero), PWM signals, or digital buses while delivering exceptional service life.
• Product description
Everything from one source: DEUTA controls the entire process chain from consultation, development, layout, component selection, fitting, testing, and production to qualification and global support. Three indicating technologies (stepper motor, moving coil instrument, digital indicator) combined with a platform concept ensure form-fit-function compatibility. In-house obsolescence management maintains unit availability across the entire vehicle life cycle.

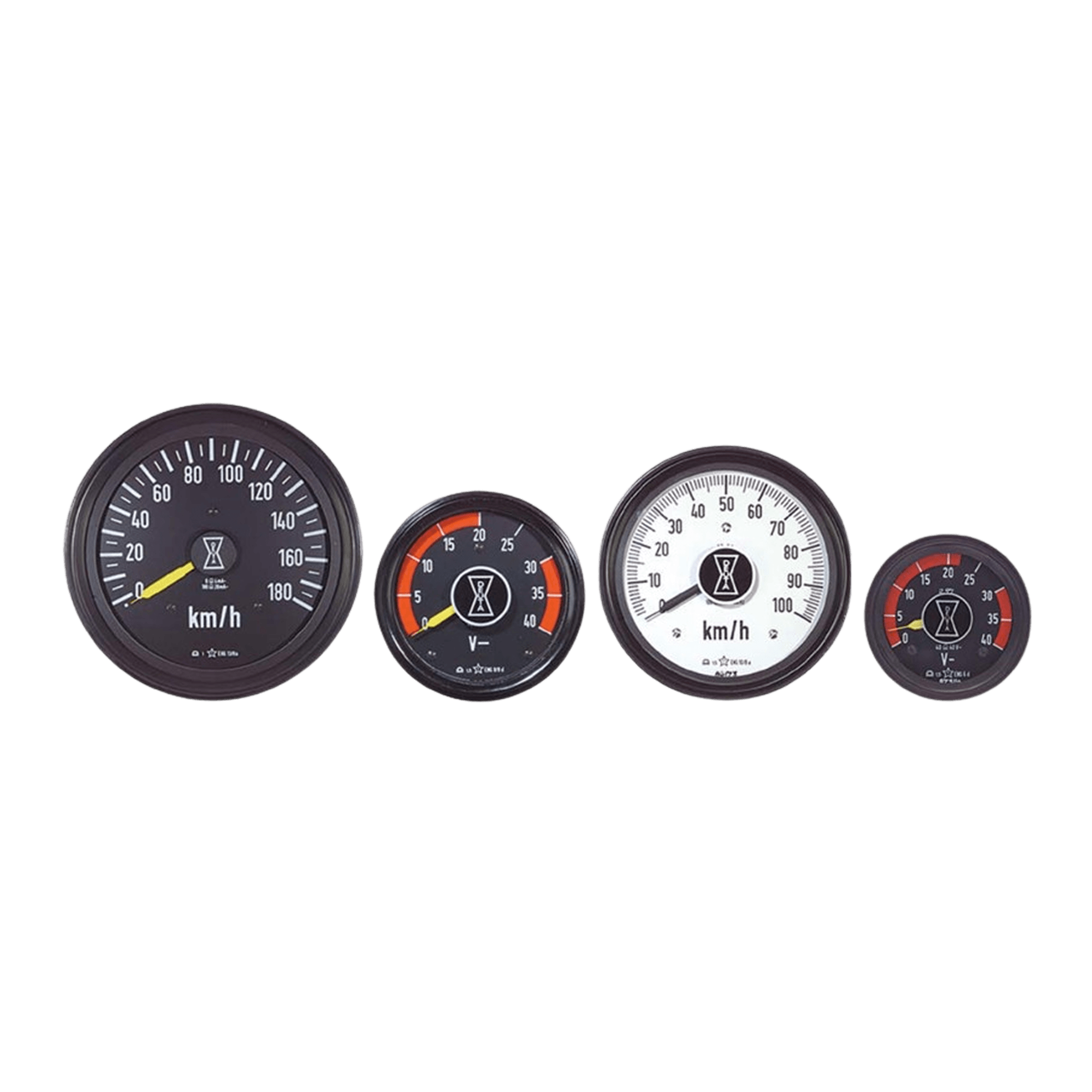

ENG indicating units – A round affair for more safety!
The round indicating units ENG 6 to ENG 13 can be controlled either with voltages (AC, DC), currents (DC), or a PWM signal. Indicating units with a 4...20 mA current input feature both a mechanical and an electrical zero point (life zero), allowing easy fault recognition in the current loop. Device versions are available with flat connectors or D-Sub, featuring internal LED or bulb lighting.

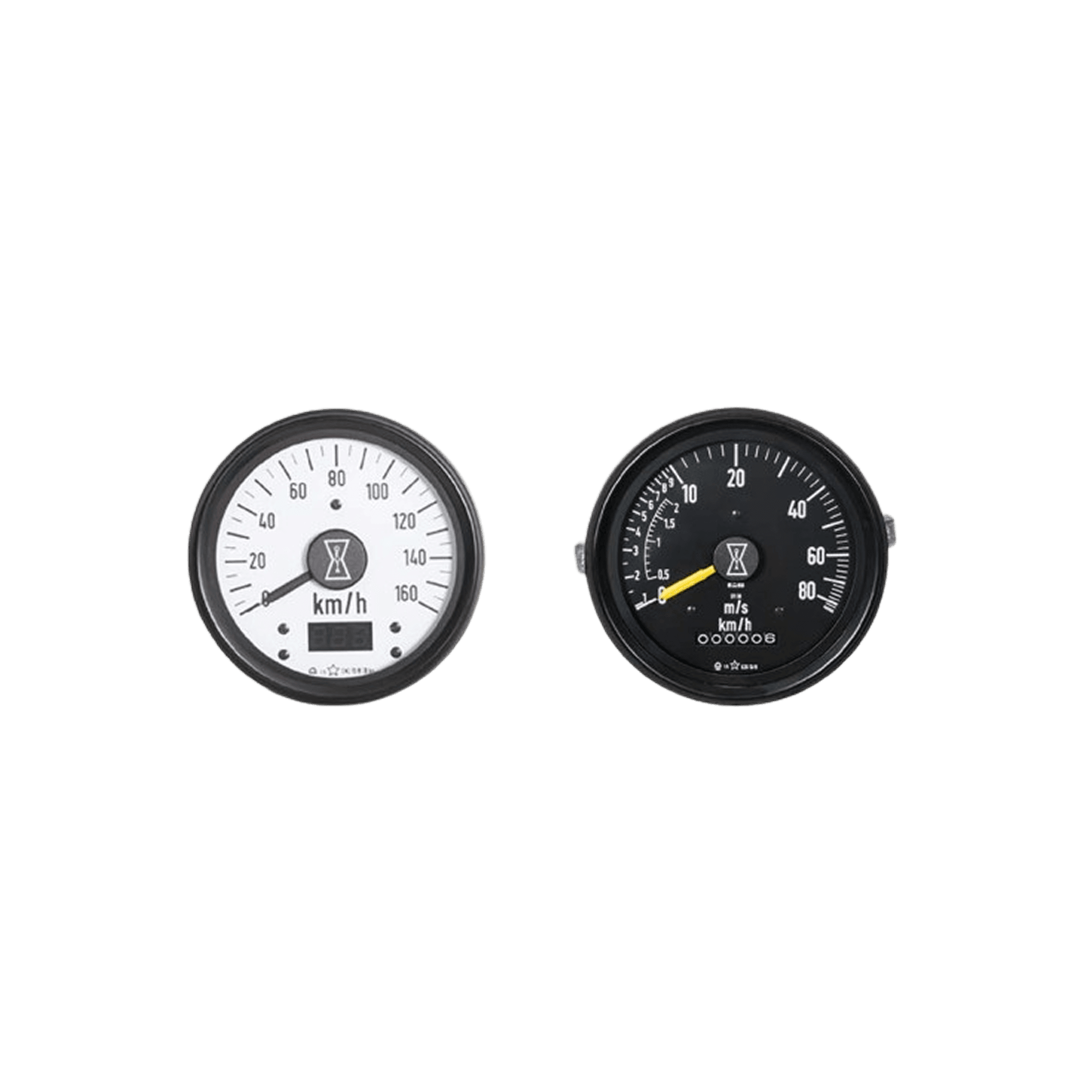

EZG indicating units – With summation counter!
Models EZG 10/9 and EZG 13/9 are identical in structure and function to indicators ENG 10/9 and ENG 13/9, but incorporate an additional mechanical 7-digit summation counter (mileage recorder). They offer flexible control and optional LED scale illumination.

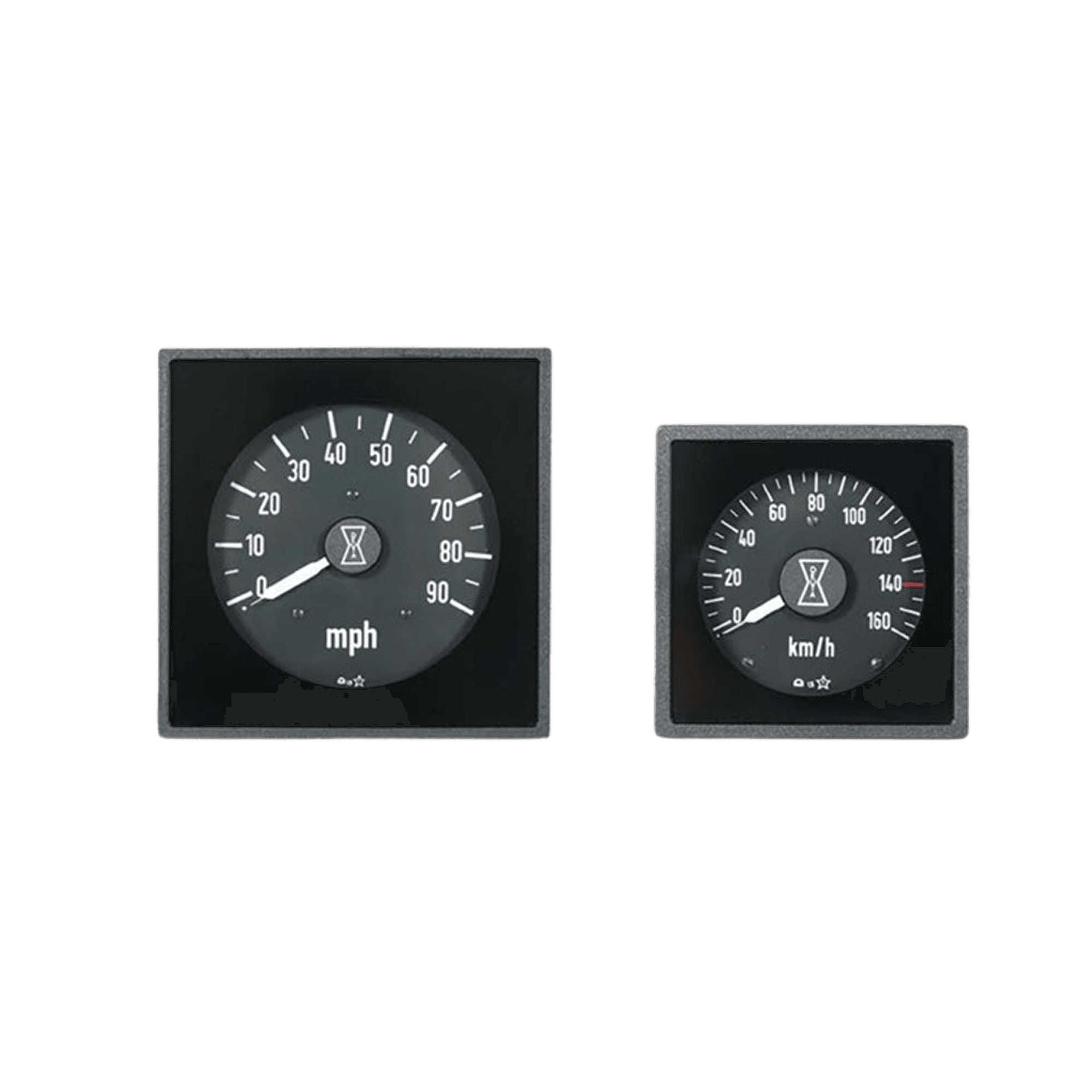

EQG indicating units – Square and good!
The EQG../9 indicating units feature a square aluminium housing while providing the same functional capabilities as the ENG series. Integrated long-life LED lighting illuminates the scale. Connectors are available as flat terminals or D-Sub sockets.

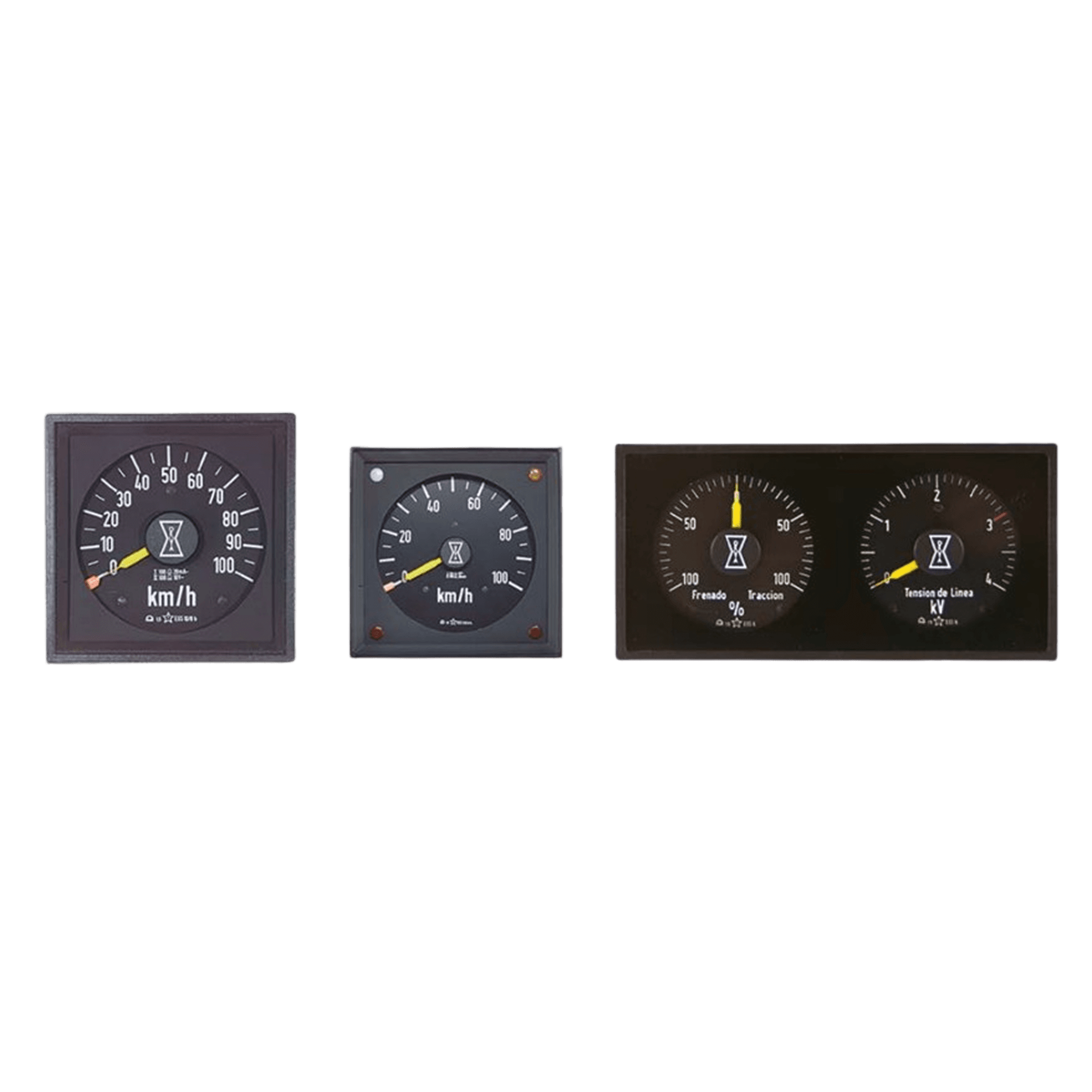

Double indicating units EGS – Doubly safe!
EGS indicating units feature two independently operating moving coil instruments whose inputs adapt to current, voltage (AC/DC), or PWM signals for simultaneous reference and actual value display. Model EGS 3/9 az includes an additional 7-digit counter. The EGS 6 unit displays traction and voltage values via a customer-specific RS485 protocol, utilizing a reset-monitored microcontroller and a galvanically isolated DC/DC power supply.
• Specification
Housing shape
Round
Input signals
AC, DC, PWM
Moving coil data
Current e.g., 20 mA, 1.5 mA
Load resistance
< 20 ohm at 20 mA measuring range
Pointer deflection
240°
Accuracy class
ENG 6: 1,5 / ENG 8/9, ENG 10/9, ENG 13/9: 1,5 or 1
Panel cutout
ENG 6: 61 mm ENG 8/9: 81 mm ENG 10/9: 101 mm ENG 13/9: 131 mm
Installation depth
ENG 6: Approx 80 mm ENG 8/9, 10/9, 13/9: Approx 90 mm
Weight
ENG 6: Approx. 0,3 kg ENG 8/9: Approx. 0,5 kg ENG 10/9: Approx. 0,6 kg EG 13/9: Approx. 0,8 kg
Scale illumination
Internal LED or external through light slits
Electrical connection
Flat connectors 6.3 x 0.8 DIN 46244 or D-Sub connector
Housing material
Sheet steel
Housing shape
Round with integrated counter
Additional counter
7-digit mechanical mileage recorder
Input signals
AC, DC, PWM
Moving coil data
Current e.g., 20 mA, 1.5 mA
Load resistance
< 20 ohm at 20 mA measuring range
Pointer deflection
240°
Accuracy class
1,5
Panel cutout (EZG 10/9 / EZG 13/9)
Diameter 101 mm / Diameter 131 mm
Installation depth
Approx. 90 mm
Weight (EZG 10/9 / EZG 13/9)
Approx. 0.6 kg / 0.8 kg
Scale illumination
Internal LED or external through light slits
Electrical connection
Flat connectors 6.3 x 0.8 DIN 46244 or D-Sub connector
Housing material
Sheet steel
Housing shape
Square
Input signals
AC, DC, PWM
Moving coil data
Current e.g., 20 mA, 1.5 mA
Load resistance
< 20 ohm at 20 mA measuring range
Pointer deflection
240°
Accuracy class
1,5
Panel cutout (EQG 9/9 / EQG 14/9)
92 x 92 mm / 138 x 138 mm
Installation depth
Approx. 90 mm
Weight (EQG 9/9 / EQG 14/9)
Approx. 0.6 kg / 0.8 kg
Scale illumination
Integrated internal LED
Electrical connection
Flat connectors 6.3 x 0.8 DIN 46244 or D-Sub connector
Housing material
Aluminium
Housing shape
Round (double measuring system)
Additional counter (az variant
7-digit pulse counter (power supply 24 V DC ±30%, P=250 mW, max signal 12 Hz)
Input signals
AC, DC, PWM
Moving coil data
Current e.g., 20 mA, 1.5 mA
Load resistance
< 20 ohm at 20 mA measuring range
Pointer deflection:
240°
Accuracy class
1,5
Panel cutout
131 mm
Installation depth
Approx. 110 mm
Weight
Approx. 1.0 kg
Scale illumination
Bulb 2x 2W Ba7s / external through light slits
Electrical connection
Flat connectors 6.3 x 0.8 DIN 46224
Housing material
Sheet steel
Housing shape
Round (double measuring system)
Input signals
AC, DC, PWM
Moving coil data
Current 0-20 mA, 1.5 mA
Load resistance
< 20 ohm at 20 mA measuring range
Pointer deflection
240°
Accuracy class
1,5
Panel cutout
101 mm
Installation depth
Approx. 98 mm
Weight
Approx. 1.0 kg
Scale illumination
Integrated LED / external through light slits
Electrical connection
Flat connectors 6.3 x 0.8 DIN 46244
Housing material
Sheet steel
Housing shape
Square (double measuring system)
Input signals
AC, DC, PWM
Moving coil data
Current 0-20 mA, 1.5 mA
Load resistance
< 20 ohm at 20 mA measuring range
Pointer deflection
240°
Accuracy class
1,5
Panel cutout
92 x 92 mm
Installation depth
Approx. 108 mm
Weight
Approx. 1.0 kg
Scale illumination
Integrated LED
Electrical connection
Flat connectors 6.3 x 0.8 DIN 46224
Housing materia
Aluminium
Housing shape
Rectangular (double digital/RS485 indicator)
Input signal
RS485 digital bus telegram
Moving coil data
1,5 mA
Pointer deflection
240°
Accuracy class
1,5
Panel cutout
185 x 92 mm
Installation depth
Approx. 100 mm
Weight
Approx. 0.8 kg
Scale illumination
Integrated LED
Electrical connection
Push-on terminal strip 10-pole + D-Sub9
Housing material
Fibre-reinforced plastic
Operating temperature range
-25 °C to +70 °C
Front face protection class
IP53
Connector protection class
IP40
Test voltage
1000 V / 50 Hz / 1 min
Vibration resistance
EN 61373, category 1, class BB
Standard compliance
EN 60051, EN 50155, CE declaration
