Product ID: DEUTA HUD Platform

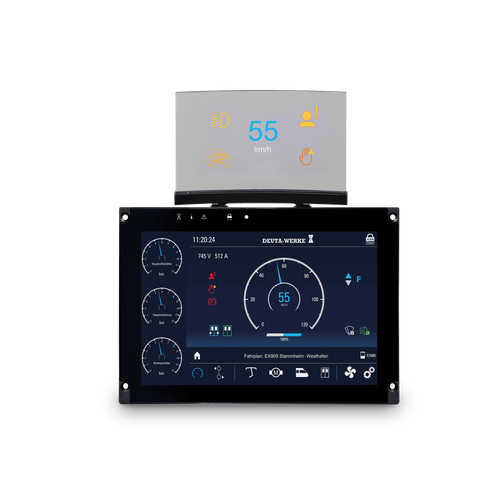

The DEUTA Head-Up Display projects essential travel and safety data onto a transparent combiner screen directly within the driver's line of sight in front of the windshield. By eliminating the need to look down at console displays, it maintains continuous visual contact with the track. Combined with an IconTrust® equipped DMI terminal, the complete system achieves safety certification up to SIL2.
Product features:
Continuous track visual oversight with zero line-of-sight interruption
Outstanding projection brightness (>15,000 cd/m²) and high contrast (1700:1)
Seamless integration with D-PowerView® and D-EcoView® DMI systems
Certified functional safety up to SIL2 using IconTrust® technology• Product description
Head-Up Displays represent state-of-the-art technology in automotive and aviation. DEUTA has developed a specialized Head-Up Display solution for railway vehicles, projecting forward travel information from driver machine instruments onto a combiner display upgraded with IconTrust safety up to SIL2.
One generic HUD platform for all railway projects: Finding the best Head-Up Display position – even in narrow installation spaces – is a complex challenge in new build and refurbishment projects. DEUTA designed a generic HUD platform, combining flexible installation options, advanced safety, and operating comfort in a compact space-saving design that fits tight driver desks.
Improvement of safety: The most relevant information is mirrored parallel on the Head-Up Display combiner surface. The driver maintains a continuous visual axis between the track and the HUD. The multifunctional terminal communicates via the vehicle computer and generates information for the HUD without altering the vehicle architecture.
In combination with an IconTrust Multifunctional Terminal, the DEUTA Head-Up Display reaches a safety level up to SIL2 by continuously analyzing and verifying projected display areas.
• Specification
Display brightness
15,000 cd/m²
Contrast ratio
1700:1
Resolution
800 x 480 pixels
Vehicle bus
MVB, Profibus, CAN, Ethernet
Power supply
Wide-range, 24-100 VDC
Projection type
Projection on a transparent combiner in front of the windshield
Viewing conditions
Independent of the angle and geometry of the windshield
Safe supervision function (optional)
In combination with IconTrust DMI up to SIL2
Displayed information
Speed, warning notices, signal lamps, navigation instructions
Compatible DMI type (D-PowerView)
Intel Atom x64 series (1.5 GHz Quad Core), Colour TFT 10.4" / 12.1" / 15"
Compatible DMI type (D-EcoView)
IMX8X Quadcore ARM A35 (1.2 GHz), Colour TFT 8" / 10.4" / 12.1"
DMI connection
High speed data cable
