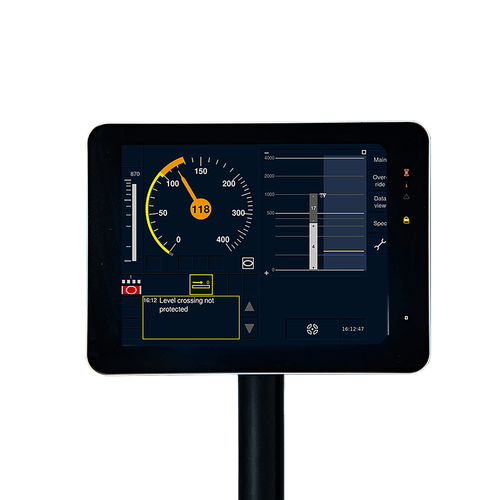

Product ID: DEUTA D-SmartView
The DEUTA D-SmartView is an elegant and ultra-slim 12.1" DMI (Driver Machine Interface) multifunctional terminal designed for flexible VESA 75 mounting. Equipped with a quad-core Intel Atom processor (4x 1.6 GHz), 8 GB RAM, alongside integrated PROFINET and PROFIsafe interfaces, it delivers high-performance visualization. Optional IconTrust and SelectTrust features support safe display and touch supervision up to SIL2.
Product features:
Sleek, modern tablet-style design with VESA 75 arm mounting for optimal ergonomicsOptically bonded display panel ensuring high contrast and glare suppression
Onboard PROFINET CC-B and PROFIsafe communication capability
Optional IconTrust® and SelectTrust® safety supervision certified up to SIL2• Product description
In modern rail vehicles, the driver's cab terminal is not only a control instrument in the driver's line of vision, but also a visual component in the overall impression of the vehicle. The D-SmartView terminal underlines the modernity of the vehicles with its very flat design, narrow rounded display edges, and a brilliant optically-bonded surface.
The D-SmartView terminal is no longer embedded inside the surface of the driver's desk, as it is designed to be mounted on a VESA monitor system. Depending on the seating position and size of the drivers, the height of the terminal can be positioned variably.
The unit comes equipped with PROFINET (CC-B support, dual port) and optionally PROFIsafe (MFTS204 variant), allowing seamless integration into modern train communication networks.
• Specification
Display type & size
Colour TFT 12.1"
Display resolution & colour depth
1024 x 768 pixels
Display backlight
LED
Dimmable lighting
0 to 800 cd/m²
Reading angle
+85° in horiz. and vert. directions
Status LEDs
3 LEDs
Ambient light sensor
Front side integrated
Input unit
Capacitive touch screen, optically bonded
CPU & clock frequency
Quadcore Intel Atom processor, 4x 1.6 GHz
RAM memory
8 GB
Graphics
Intel HD Graphics 500
Bulk memory
Up to 64 GB
Additional controller
Environment Controller
Operating system
LINUX
Ethernet
1x 10/100 BaseT (M12 D-coded)
PROFINET
2x CC-B dual port (M12 D-coded), PNIO v2.43
Audio out
Class-D stereo audio amplifier min. 5 W at 8 ohm
USB interfaces
2x USB 2.0 (M8 A-coded)
Vehicle bus
1x Ethernet, 1x PROFINET (on request: CAN, MVB, RS422, RS485)
Device coding
4 codings possible
Buzzer
Yes
Power consumption
Typ. 25 W
Power supply
Prepared for external 24 VDC power supply unit
Front dimensions (W x H)
318 mm x 234 mm
Weight
Approx. 3.6 kg
Protection category front / rear
IP42 (dust and water spray resistant)
Mounting
Prepared for VESA 75 standard
Operating temperature range
-25 °C to +55 °C (full functionality)
Safe supervision function (optional)
With IconTrust up to SIL2 / With SelectTrust up to SIL2
Applications
Variable, depends on area of application
EN standards compliance
EN 45545, EN 50155, EN 50121-3-2, EN 55011, EN 61000-4-x
