Product ID: MXM600 (Single Remote)

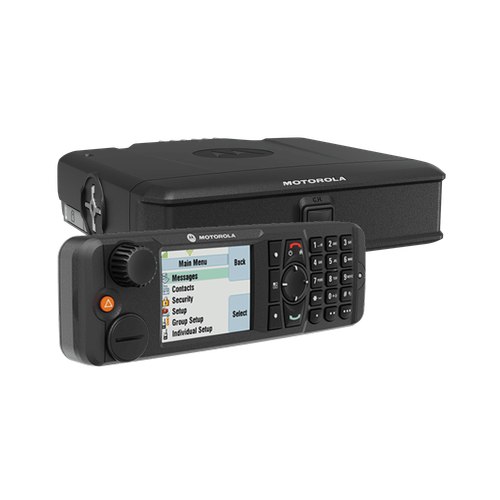

The Motorola MXM600 Single Remote is a versatile TETRA mobile transceiver featuring a single Ethernet remote control head architecture separated from the transceiver unit. It delivers Class 2 (10 W) RF output power, RJ50 Ethernet connectivity (up to 40 m cable distance), AI-trained machine-learning noise suppression, Wi-Fi, Bluetooth 5.3, multi-GNSS, and IP54 environmental protection.
Product features:
TETRA – remote 10 W (Class 2) mobile transceiver supporting DMO Repeater/Gateway and DIMETRA Connect Wi-Fi fallback
Single RJ50 Ethernet port connecting one remote control head up to 40 meters away from the transceiver
Single RJ50 Ethernet port connecting one remote control head up to 40 meters away from the transceiver
Single RJ50 Ethernet port connecting one remote control head up to 40 meters away from the transceiver • Product description
The Single Remote transceiver supports four distinct Motorola Solutions control heads: standard RECH (IP54), ruggedized RECH (IP67), telephone-style TSCH (IP55), or handheld M6 (IP56). Generating up to Class 2 (10 W) transmit power, the system utilizes AI-trained noise suppression to isolate voice communication from harsh engine noise, sirens, and pump clamor.
The MXM600 Single Remote transceiver automatically detects attached control heads and aligns software versions without manual intervention. Integrated Wi-Fi allows fleet managers to execute over-the-air programming (OTAP) wirelessly whenever the vehicle arrives at a depot. Reusing MTM5000 series audio accessories and most cabling protects existing infrastructure investments.
The Motorola MXM600 Single Remote radio is designed for police cars, medical transport, fire engines, commercial trucks, maritime vessels, and rail locomotives.
Patrol cars & commercial fleets: concealed transceiver mounting paired with a sleek RECH or M6 handheld control head on the dash.
Ambulances & utility vehicles: telephone-style TSCH control head in cabin setups for confidential communication.
Railways & boats: secure equipment bay installation with IP67 waterproof control head mounted on active helm stations (EN 50155 certified).
Radiotelefon Motorola MXM600 Single Remote dedykowany jest dla samochodów osobowych, patrolowych, ciężarowych, pojazdów ratownictwa medycznego, straży pożarnej oraz łodzi i lokomotyw.
Radiowozy i samochody patrolowe: dyskretna instalacja nadajnika z głowicą RECH lub ręczną M6 montowaną w uchwycie na desce.
Ambulanse i pojazdy techniczne: wygodne zarządzanie łącznością z poziomu głowicy telefonicznej TSCH w szoferce.
Kolej i jednostki pływające: bezpieczny montaż jednostki w szafie aparaturowej i wyprowadzenie wodoszczelnej głowicy IP67 na pulpit sterowniczy (zgodność z EN 50155).
• Specification
Control Head Options (Selectable)
IP54 RECH, IP67 RECH, TSCH (IP55), M6 Handheld (IP56), or 3rd Party OEM RDC solution
Talkgroup & Message Capacity
TMO: up to 10,000 (500 folders) / DMO: up to 2,000 (128 folders) / SDS: 200 entries
Single Remote Transceiver Dimensions (H x W x D)
45 x 172 x 186 mm
Total Weight (Transceiver + Expansion Head)
1355 g
Control Head Cable Distance
Up to 40 meters via single RJ50 Ethernet cable
Electrical Power Supply
10.8 V to 15.6 V DC (Current drain: Standby 0.5 A / Rx 1.1 A / Tx @ 10 W: 2.4 A, 3.5 A peak)
Wi-Fi Connectivity
IEEE 802.11a/b/g/n/ac (2.4 GHz, 5 GHz) supporting WPA2, WPA3 Enterprise, and TLS 1.2
Bluetooth Module
Version 5.3 (Class 1, line-of-sight range up to 90 m, AES128 NIST encryption)
GNSS Receiver
GPS, Galileo, GLONASS, BeiDou, QZSS (2D accuracy < 1.0 m for GPS+Galileo)
Control Head Connector
1 x Front RJ50 Ethernet Control Head connector
Rear Transceiver Ports
1 x 26-pin Accessory Connector (USB 2.0 / USB OTG, GPIO) 1 x Power Connector Antenna Connectors: TETRA, GNSS, Combined Bluetooth/Wi-Fi Internal TETRA SIM Card Slot
Frequency Bands
Wideband: 350–470 MHz or 806–870 MHz
RF Transmit Power Class
Class 2 (10 W) and Class 3 (3 W) with adaptive power control (15 dBm to 40 dBm)
Receiver Static Sensitivity (ETSI 300-392-2)
350–470 MHz: -116 dBm (guaranteed) / -118 dBm (typical) 806–870 MHz: -114 dBm (guaranteed) / -116 dBm (typical)
Receiver Dynamic Sensitivity (ETSI 300-392-2)
350–470 MHz: -107 dBm (guaranteed) / -109 dBm (typical) 806–870 MHz: -105 dBm (guaranteed) / -107 dBm (typical)
Repeater & Gateway Capability
DMO Repeater (ETSI Type 1A) and DMO/TMO Gateway functionality
Audio Output Power
External Loudspeakers: 7.5 W / 13 W / 15.6 W wideband / M6 internal speaker: 2.2 W
Noise Suppression
AI-trained Noise Suppression with Echo Cancellation and Howling Suppression
Air Interface Encryption
TEA1, TEA2, TEA3 (Classes 1, 2, 3, 3G) and hardware-ready for TEA5, TEA6, TEA7
End-to-End Encryption (E2EE)
AES128 or AES256 for voice and data via HSM card or internal TETRA / BSI SIM card
Military Standards MIL-STD
MIL-STD 810C/D/E/F/G/H
Industry & Railway Standards
RED 2014/53/EU, E-Mark (ECE Reg 10), EN 50155 / IEC 60571, EN 50121-3-2
Ingress Protection (dust and water)
IEC 60529: IP54 for the entire transceiver unit with connected cables
Operating Temperature
-30°C to +70°C (full performance -30°C to +60°C)
Storage Temperature
-40°C to +85°C
