Product ID: MXM600 (Dual Remote)

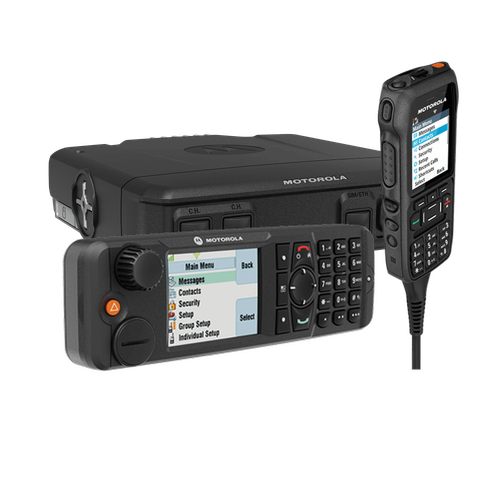

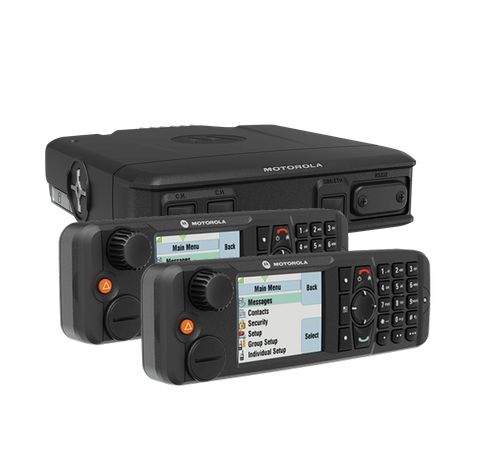

The Motorola MXM600 Dual Remote is an advanced multi-control TETRA mobile transceiver supporting two control heads on a single transceiver, or controlling two transceivers from a single control head. It delivers Class 2 (10 W) RF output power, dual RJ50 Ethernet ports (up to 80 m distance), Ethernet/SIM interface, RS232, AI noise suppression, Wi-Fi, Bluetooth 5.3, multi-GNSS, and IP54 protection.
Product features:
TETRA – multi-control 10 W (Class 2) mobile transceiver supporting 2 control heads or 2 transceivers, DMO Repeater/Gateway, and DIMETRA Connect Wi-Fi fallback
Dual RJ50 Ethernet ports supporting remote control head separation up to 40 m from transceiver and up to 80 m between heads
RS232 data port, dedicated Ethernet/SIM port, and support for RECH, TSCH, M6, or Virtual Control Heads
Wi-Fi OTAP updates, Bluetooth 5.3, multi-GNSS, MIL-STD 810H, and EN 50155 railway compliance • Product description
The Motorola MXM600 Dual Remote model is engineered for complex vehicle installations requiring radio access from multiple locations. Connecting two independent control heads to a single transceiver allows crew members in front and rear compartments (e.g. fire engines, ambulances, or marine vessels) to operate the same radio. Ethernet-based RJ50 cabling allows control heads to be positioned up to 80 meters apart.
The Dual Remote model also supports controlling two transceivers from a single control head. This allows operators to monitor or transmit across two distinct modes simultaneously (e.g., TMO and DMO) or communicate across joint-agency networks. Integrated AI-trained noise suppression eliminates sirens, water pumps, and engine noise to ensure speech clarity across all connected stations.
Beyond dual RJ50 ports, the Dual Remote transceiver includes dedicated RS232 and Ethernet/SIM ports for seamless integration into vehicle LAN networks, virtual control head operation, and mobile data computers (PEI). On-board Wi-Fi supports over-the-air programming (OTAP), while Bluetooth 5.3 permits remote control via the M-Radio Control smartphone app.
The Motorola MXM600 Dual Remote radio is designed for heavy fire engines, medical vehicles, trains, command trucks, ships, and multi-agency operations.
Fire appliances & ambulances: independent control stations for drivers in the cabin and operators in patient/equipment bays.
Railways & locomotives: dual-cab train installations controlling a central transceiver over long distances (EN 50155 certified).
Command vehicles & joint operations: single control head managing two separate transceivers for multi-agency coordination.
• Specification
Control Head Options (Any combination of 2)

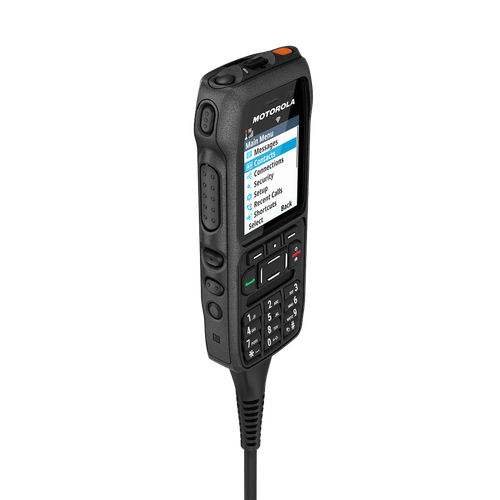

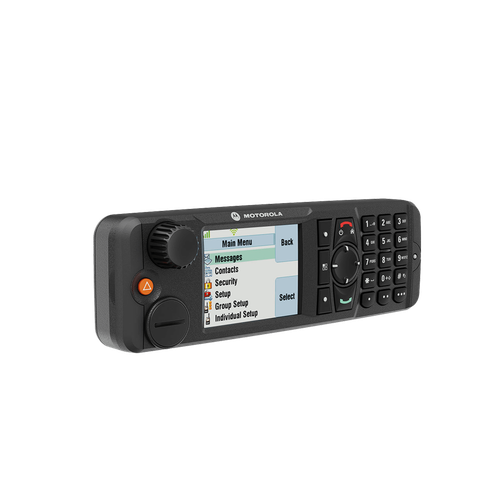

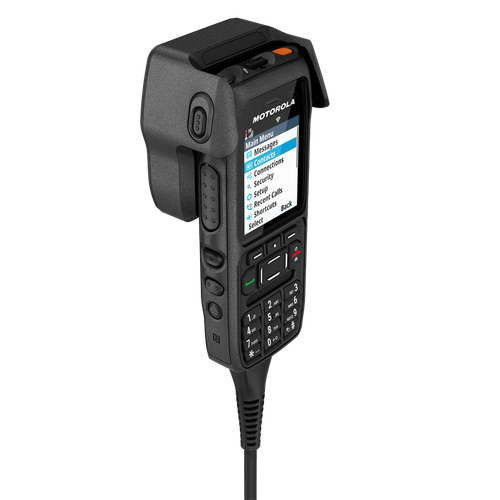

IP54 RECH, IP67 RECH, TSCH (IP55), M6 Handheld (IP56), or 3rd Party OEM RDC solution
Talkgroup & Message Capacity
TMO: up to 10,000 (500 folders) / DMO: up to 2,000 (128 folders) / SDS: 200 entries
Dual Remote Transceiver Dimensions (H x W x D)
45 x 172 x 194 mm
Total Weight (Transceiver + Expansion Head)
1415 g
Control Head Cable Distance
Up to 40 meters (transceiver to head) / up to 80 meters between control heads
Electrical Power Supply
10.8 V to 15.6 V DC (Current drain: Standby 0.5 A / Rx 1.1 A / Tx @ 10 W: 2.4 A, 3.5 A peak)
Wi-Fi Connectivity
IEEE 802.11a/b/g/n/ac (2.4 GHz, 5 GHz) supporting WPA2, WPA3 Enterprise, and TLS 1.2
Bluetooth Module
Version 5.3 (Class 1, line-of-sight range up to 90 m, AES128 NIST encryption)
GNSS Receiver
GPS, Galileo, GLONASS, BeiDou, QZSS (2D accuracy < 1.0 m for GPS+Galileo)
Control Head & Network Connectors
2 x Front RJ50 Ethernet Control Head Connectors 1 x RJ50 External SIM / RJ45 Ethernet Connector 1 x RS232 Port (9-pin SubD) for PEI and data integration
Rear Transceiver Ports

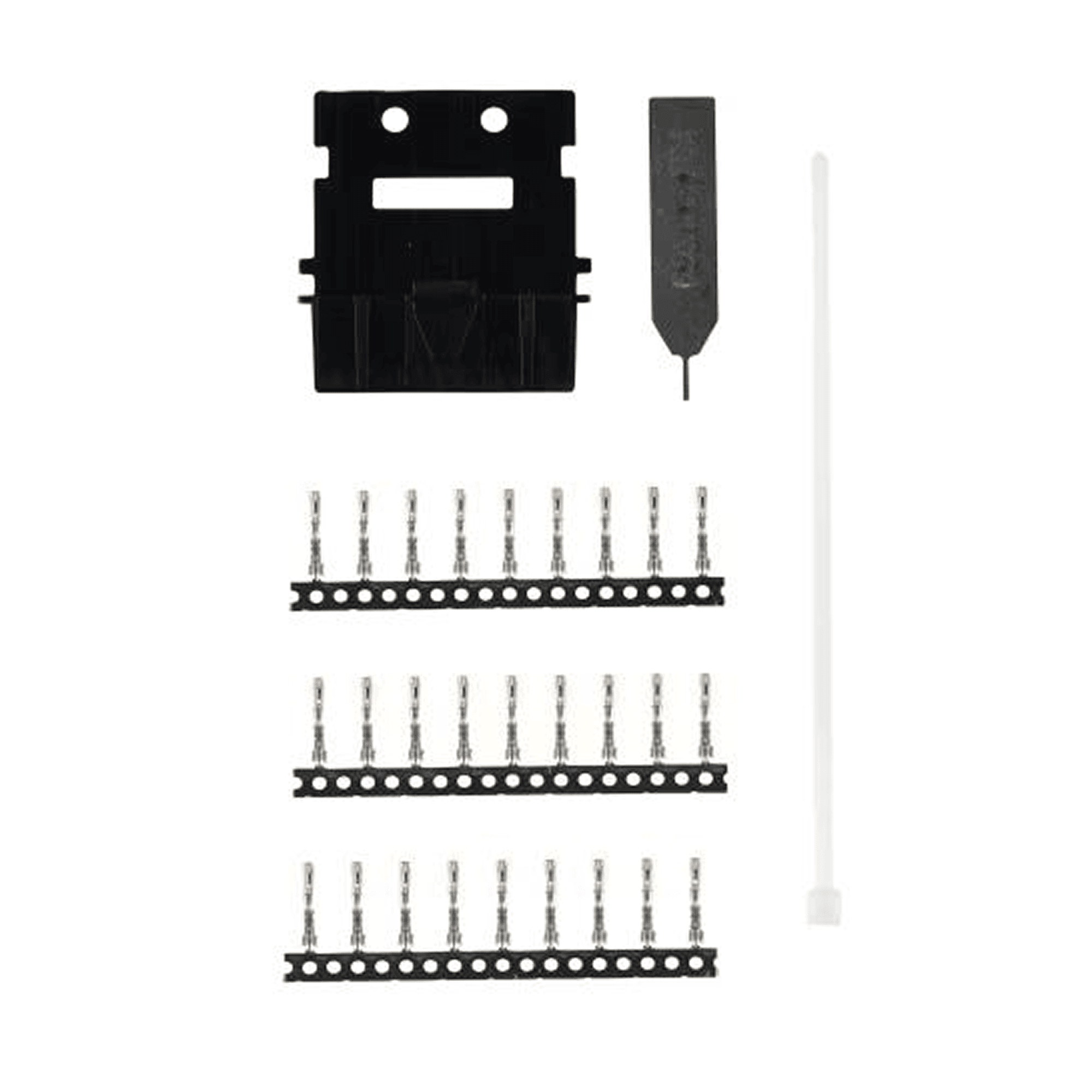

1 x 26-pin Accessory Connector (USB 2.0 / USB OTG, GPIO) 1 x Power Connector Antenna Connectors: TETRA, GNSS, Combined Bluetooth/Wi-Fi Internal TETRA SIM Card Slot
Frequency Bands
Wideband: 350–470 MHz or 806–870 MHz
RF Transmit Power Class
Class 2 (10 W) and Class 3 (3 W) with adaptive power control (15 dBm to 40 dBm)
Receiver Static Sensitivity (ETSI 300-392-2)
350–470 MHz: -116 dBm (guaranteed) / -118 dBm (typical) 806–870 MHz: -114 dBm (guaranteed) / -116 dBm (typical)
Receiver Dynamic Sensitivity (ETSI 300-392-2)
350–470 MHz: -107 dBm (guaranteed) / -109 dBm (typical) 806–870 MHz: -105 dBm (guaranteed) / -107 dBm (typical)
Repeater & Gateway Capability
DMO Repeater (ETSI Type 1A) and DMO/TMO Gateway functionality
Audio Output Power

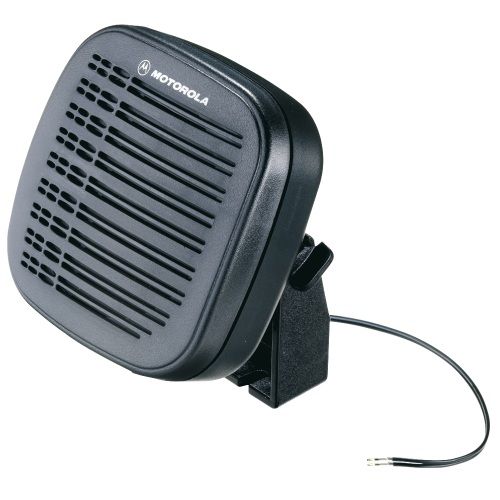

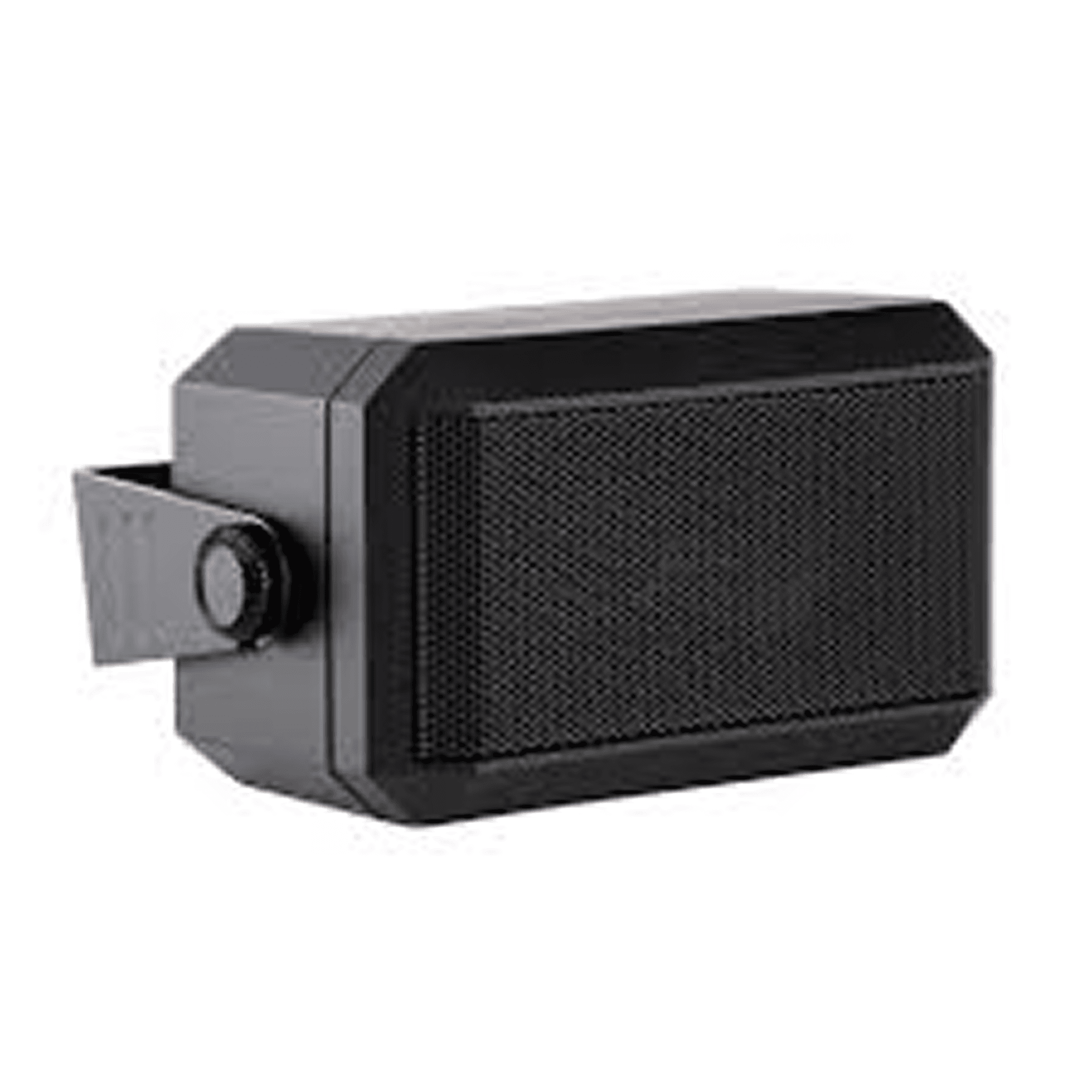

External Loudspeakers: 7.5 W / 13 W / 15.6 W wideband / M6 internal speaker: 2.2 W
Noise Suppression
AI-trained Noise Suppression with Echo Cancellation and Howling Suppression
Air Interface Encryption
TEA1, TEA2, TEA3 (Classes 1, 2, 3, 3G) and hardware-ready for TEA5, TEA6, TEA7
End-to-End Encryption (E2EE)
AES128 or AES256 for voice and data via HSM card or internal / external TETRA SIM card / BSI
Military Standards MIL-STD
MIL-STD 810C/D/E/F/G/H
Industry & Railway Standards
RED 2014/53/EU, E-Mark (ECE Reg 10), EN 50155 / IEC 60571, EN 50121-3-2
Ingress Protection (dust and water)
IEC 60529: IP54 for transceiver unit with connected cables
Operating Temperature
-30°C to +70°C (full performance -30°C to +60°C)
Storage Temperature
-40°C to +85°C
