Product ID: TLK 150

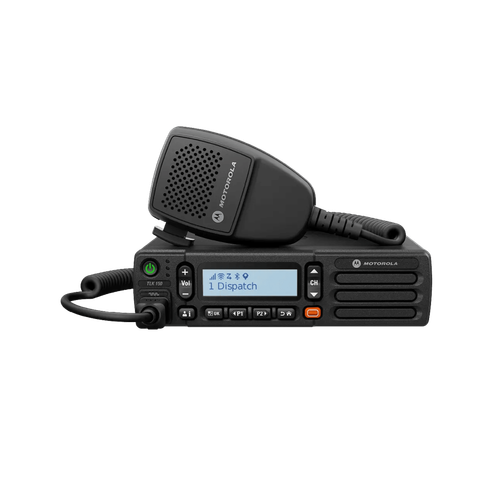

The Motorola TLK 150 is a professional PTT over Cellular (PoC) mobile two-way radio designed for vehicles and desktop installations within the WAVE PTX ecosystem. It delivers broadband communications across 4G LTE, 3G, and Wi-Fi (2.4 / 5.0 GHz) networks, supporting 12 V / 24 V dual-voltage operation and AES-256 encryption. Housed in a compact form factor (169 x 44 x 93 mm, 640 g), it meets IP54 rating, MIL-STD-810G standards, and E-mark automotive certifications. Features include GNSS tracking (GPS, GLONASS, Galileo, BeiDou), Bluetooth V4.2 BLE, 96 channel capacity, and Over-The-Air (OTA) remote management.
Product features:
IP54 and MIL-STD-810G rated chassis with E-mark certification and 12 V / 24 V power for transport, logistics, and construction
Broadband PTT over 4G LTE, 3G, and Wi-Fi with precise GNSS tracking for municipal and field services
Private and group PTT calls with Bluetooth support and up to 16 W audio output via external speaker
Over-The-Air (OTA) remote talkgroup setup and fleet updates via the WAVE PTX portal for security and fleet management • Product description
The Motorola TLK 150 combines the speed and simplicity of two-way push-to-talk communications with the extensive coverage of 4G LTE cellular and Wi-Fi networks. Purpose-built for safe in-vehicle operation, it allows drivers to communicate with teams using a single PTT button on the palm microphone or via steering-wheel-mounted foot/remote switches. The device eliminates the need for complex repeater infrastructure or spectrum licensing, offering instant wide-area coverage for commercial fleets.
Engineered for demanding mobile environments, the TLK 150 provides clear audio performance via a 4 W internal speaker, expandable up to 16 W with an external speaker. Built to meet IP54 dust and splash resistance, MIL-STD-810G military standards, and E-mark automotive regulations (ECE Regulation 10), it handles vehicle vibrations, temperature extremes, and power surges in 12 V and 24 V electrical systems. Integrated GNSS location tracking provides real-time fleet visibility for dispatchers.
The WAVE PTX administration portal empowers fleet managers to configure devices, adjust talkgroups, and push software updates Over-The-Air (OTA) from any web browser without physical radio access. The TLK 150 seamlessly bridges in-vehicle workers with field personnel using TLK 25, TLK 100, and TLK 110 wearables, smartphone users running the WAVE PTX mobile app, and central office operators utilizing WAVE PTX Dispatch consoles.
• Specification
SKU / catalog number
TLK 150
Device type
WAVE PTX mobile two-way radio (PoC)
Dimensions (W x H x D)
169 x 44 x 93 mm (6.7 x 1.7 x 3.7 in)
Weight
640 g (22.6 oz)
Communication standard
PTT over Cellular / Broadband PTT (WAVE PTX)
Supported cellular bands
4G LTE: 1, 2, 3, 4, 5, 7, 8, 13, 17, 19, 20, 21, 28 3G UMTS: 1, 2, 5, 8
Supported Wi-Fi networks
802.11 a/b/g/n (2.4 GHz / 5.0 GHz)
SIM card options
Pre-installed SIM data service included in WAVE PTX subscription or SIM-free model
Channel capacity
96 channels
Contact list capacity
300 contacts
Bluetooth
Bluetooth V4.2 BR/EDR + BLE
Location & GPS
GNSS / AGPS (GPS, GLONASS, Galileo, BeiDou) with external antenna
Encryption
AES-256
Ingress protection
IP54 (IEC 60529 cat. 2)
Military standards
MIL-STD-810G (methods 500.5, 501.5, 502.5, 503.5, 505.5, 506.5, 510.5, 512.5, 514.6, 516.6) and equivalent C, D, E, F standards
Automotive standards
E-mark certified, UN ECE Regulation 10 for electrical/electronic sub-assemblies
ESD resistance
IEC 61000-4-2, Level 4
Operating temperature range
-20°C - +60°C
Storage temperature range
-40°C - +85°C
Operating voltage
12 V / 24 V DC (dual voltage support)
Connectors
Front: RJ45 port for wired mobile palm microphone Rear: SMA antenna connectors (LTE, GNSS), 20-pin MAP connector for accessories
Digital vocoder type
OPUS
Rated audio output power

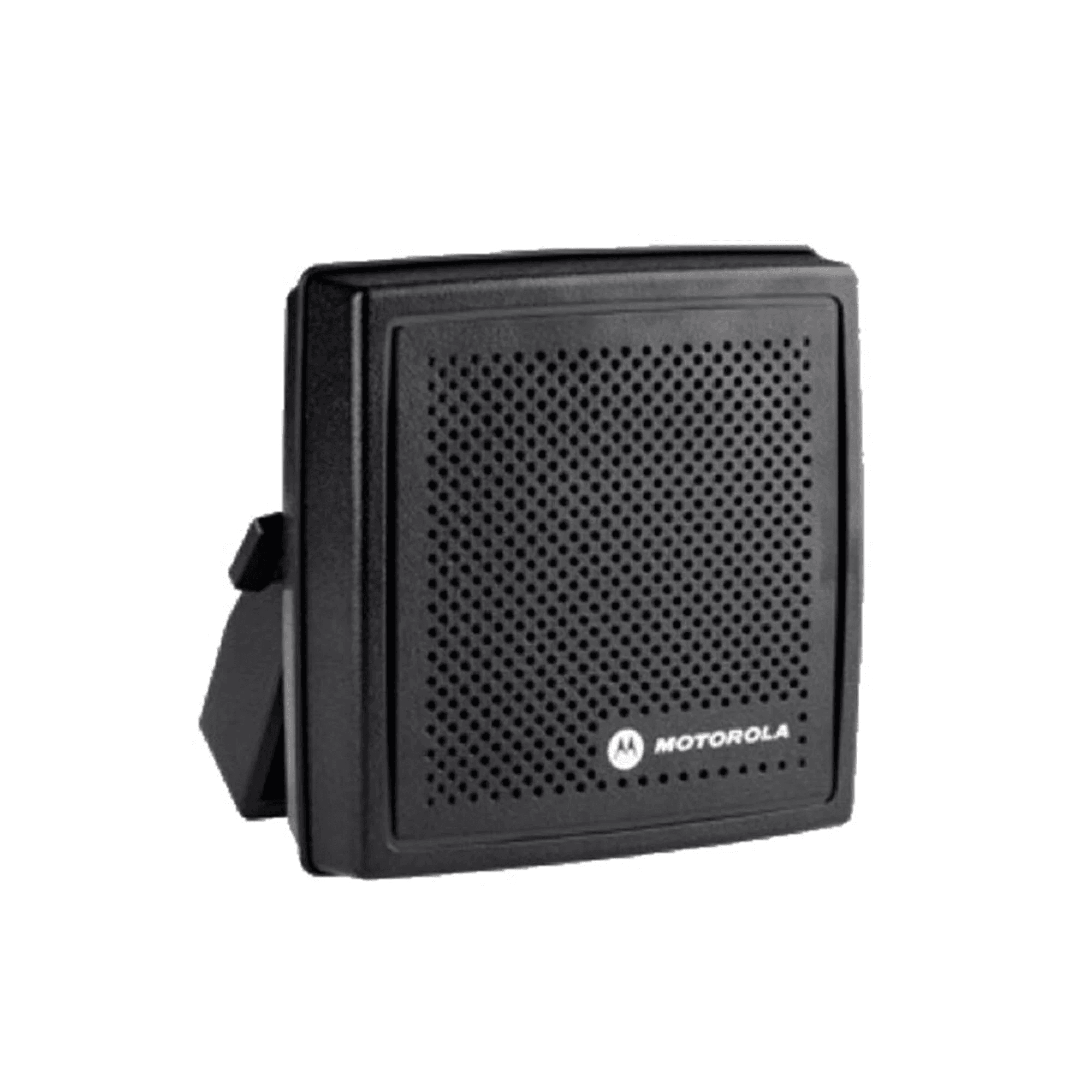

4 W (internal speaker) / 16 W (external 4 Ohm speaker)
Audio distortion at rated power
3% (typical)
Antennas
External LTE antenna, external GNSS antenna, internal Wi-Fi/Bluetooth antenna
Device management
Over-The-Air (OTA) remote management via browser, WAVE PTX portal
Package contents

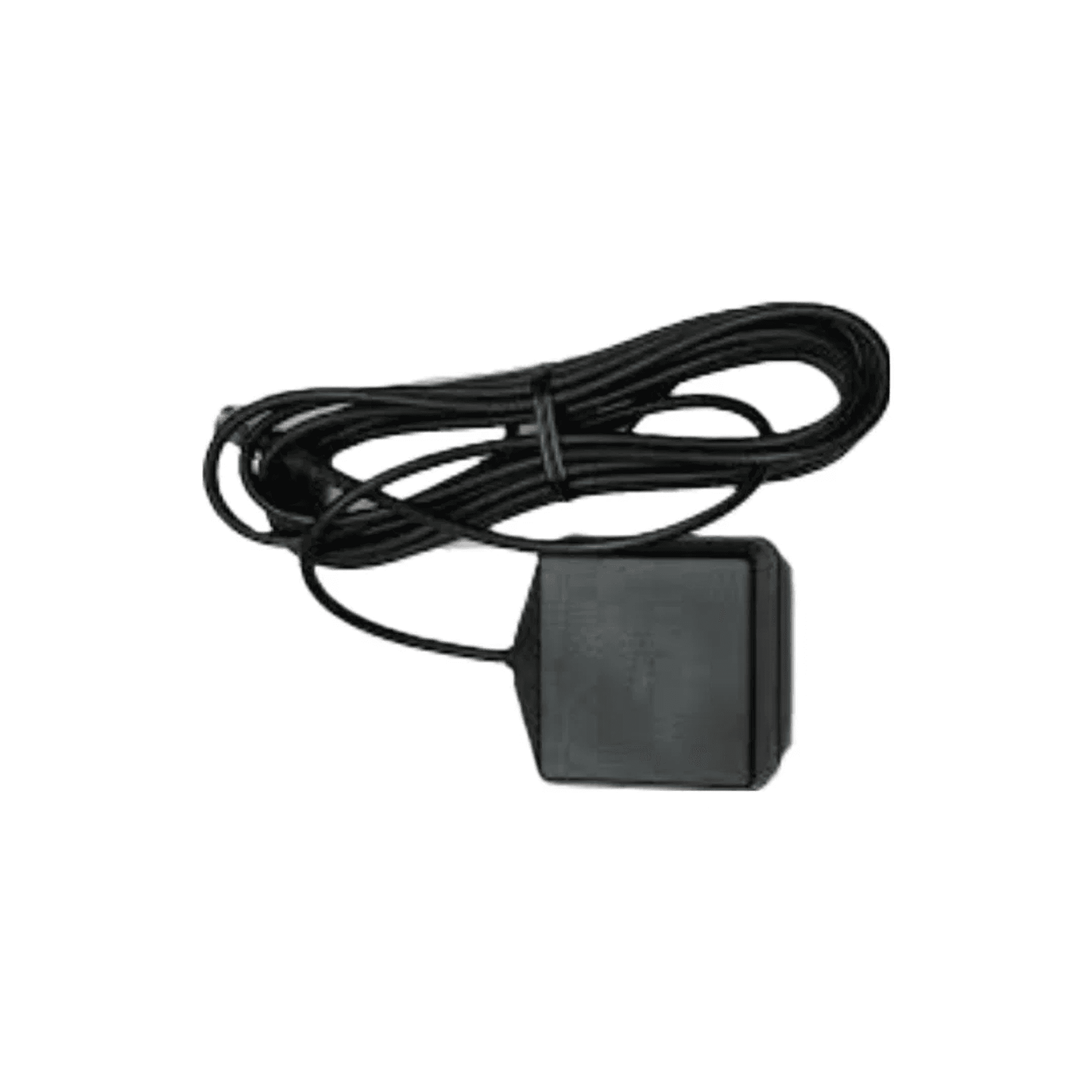

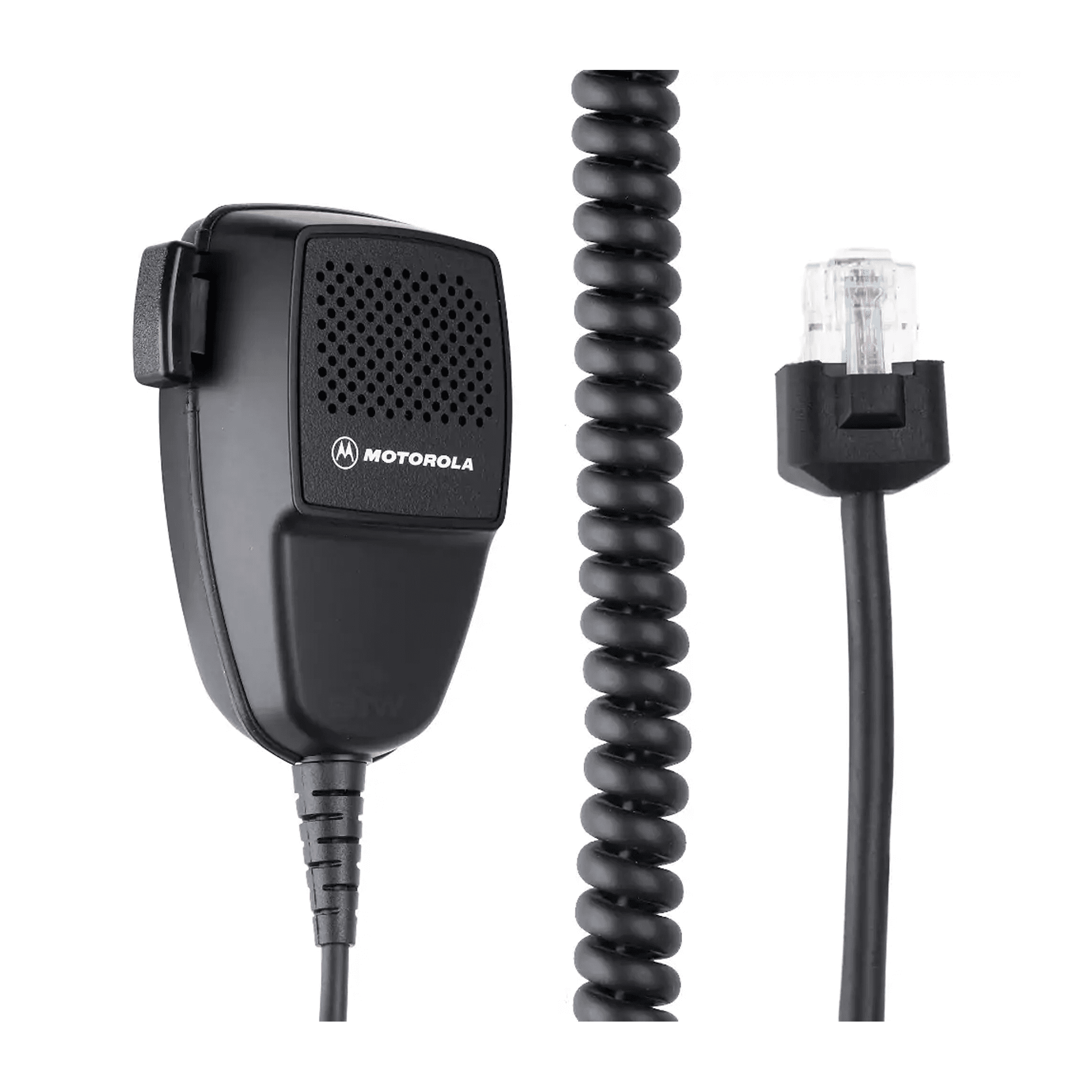

1 x WAVE PTX TLK 150 mobile radio 1 x Broadband compact mobile microphone (PMMN4129) 1 x 3 m DC power cable with 15 A fuse (HKN4137) 1 x Dash/window mount LTE antenna (AN000358A01) 1 x Dash mount GNSS antenna (AN000359A01) 1 x Low-profile mounting bracket (RLN6466)
