Product ID: TLK 100

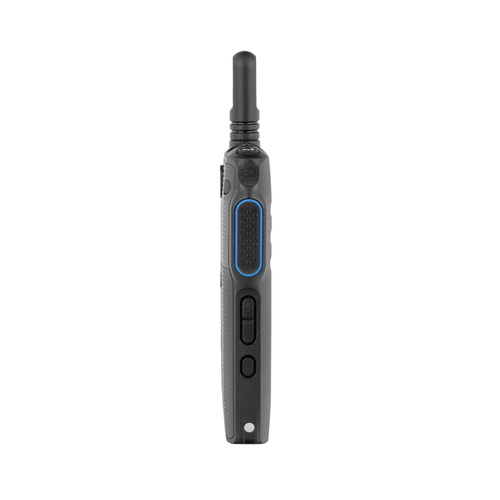

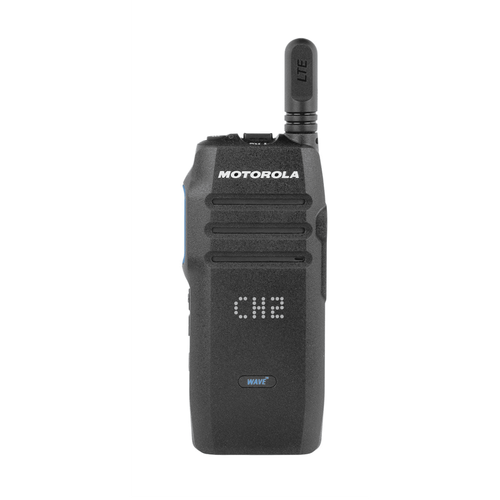

The Motorola TLK 100 is a durable (170 g), screenless PTT over Cellular (PoC) portable radio engineered to operate across 3G/4G LTE cellular and Wi-Fi networks on the WAVE PTX platform. It provides instant Europe-wide push-to-talk communications without needing custom radio infrastructure or spectrum licenses. Featuring a 2500 mAh Li-Ion battery providing up to 18 hours of operation, a multi-constellation GNSS receiver (GPS, GLONASS, Galileo, BeiDou), and AES-256 encryption. The rugged unit meets IP54 and MIL-STD-810G standards, supports Over-The-Air (OTA) management, and maintains full compatibility with MOTOTRBO SL1600 accessories.
Product features:
Target sectors: Security, transportation, logistics, construction, and utilities
Design: Screenless, rugged housing compliant with IP54 and MIL-STD-810G
Connectivity: Broad coverage over 3G/4G LTE networks and dual-band Wi-Fi
Functionality: Built-in GNSS (GPS/GLONASS/Galileo/BeiDou) and AES-256 encryption
Power & management: 18-hour battery life, OTA remote configuration, and SL-series accessory support • Product description
The Motorola TLK 100 combines the simplicity of traditional push-to-talk radio communications with the expansive coverage of cellular networks. It enables organizations to rapidly deploy communication fleets across borders in under 24 hours, bypassing the costs and delays of spectrum licensing or infrastructure maintenance. Integrated with the WAVE PTX platform and radio gateways, the TLK 100 bridges two-way radio systems such as MOTOTRBO™ Capacity Plus and Capacity Max with smartphone apps and dispatch consoles.
Engineered for maximum worker focus, the TLK 100 features a sleek, screenless form factor that keeps employees engaged on the job without the distraction of smartphone notifications or emails. Its long-lasting 2500 mAh battery delivers up to 18 hours of power to cover long shifts, while integrated Wi-Fi connectivity ensures reliable communications inside industrial facilities where cellular coverage might be limited. Location tracking via GPS enhances worker safety and allows managers to optimize field operations in real time.
The TLK 100 is tailored for businesses needing simple, reliable, and wide-area push-to-talk connectivity. Key application areas include:
Transportation & Logistics: seamless communication with drivers across regional and national routes
Construction & Engineering: instant coordination across multiple active job sites
Security & Event Management: dependable voice communication for patrol teams and large venue staff
Utilities & Field Services: location monitoring and dispatch for mobile service crews
• Specification
SKU / catalog number
TLK 100
Device type
WAVE PTX portable two-way radio (PoC)
Dimensions without antenna (H x W x D)
131 x 59 x 22 mm (5.2 x 2.3 x 0.9 in)
Dimensions with antenna (H x W x D)
169 x 59 x 22 mm (6.7 x 2.3 x 0.9 in)
Weight (with battery)
170 g (6.0 oz)
Communication standard
PTT over Cellular / Broadband PTT (WAVE PTX)
Supported networks
3G, 4G LTE, Wi-Fi
Wi-Fi standards
802.11 a/b/g/n (2,4 GHz / 5,0 GHz)
SIM card
Pre-installed SIM card
Channel capacity
96 channels
Contact list capacity
300 contacts
Bluetooth
Version V4.2, BLE
Location & GPS
Wbudowany GNSS / AGNSS (GPS, GLONASS, Galileo, BeiDou)
Encryption
AES-256
Ingress protection
IP54 (IEC 60529)
Military standards
MIL-STD-810G (methods 500.5, 501.5, 502.5, 503.5, 505.5, 506.5, 510.5, 512.5, 514.6, 516.6) and equivalent C, D, E, F ratings
ESD resistance
IEC 61000-4-2 Level 4
Operating temperature range
-20°C to 60°C (radio) / -10°C to 60°C (with battery)
Storage temperature range
-40°C - +85°C
Battery capacity

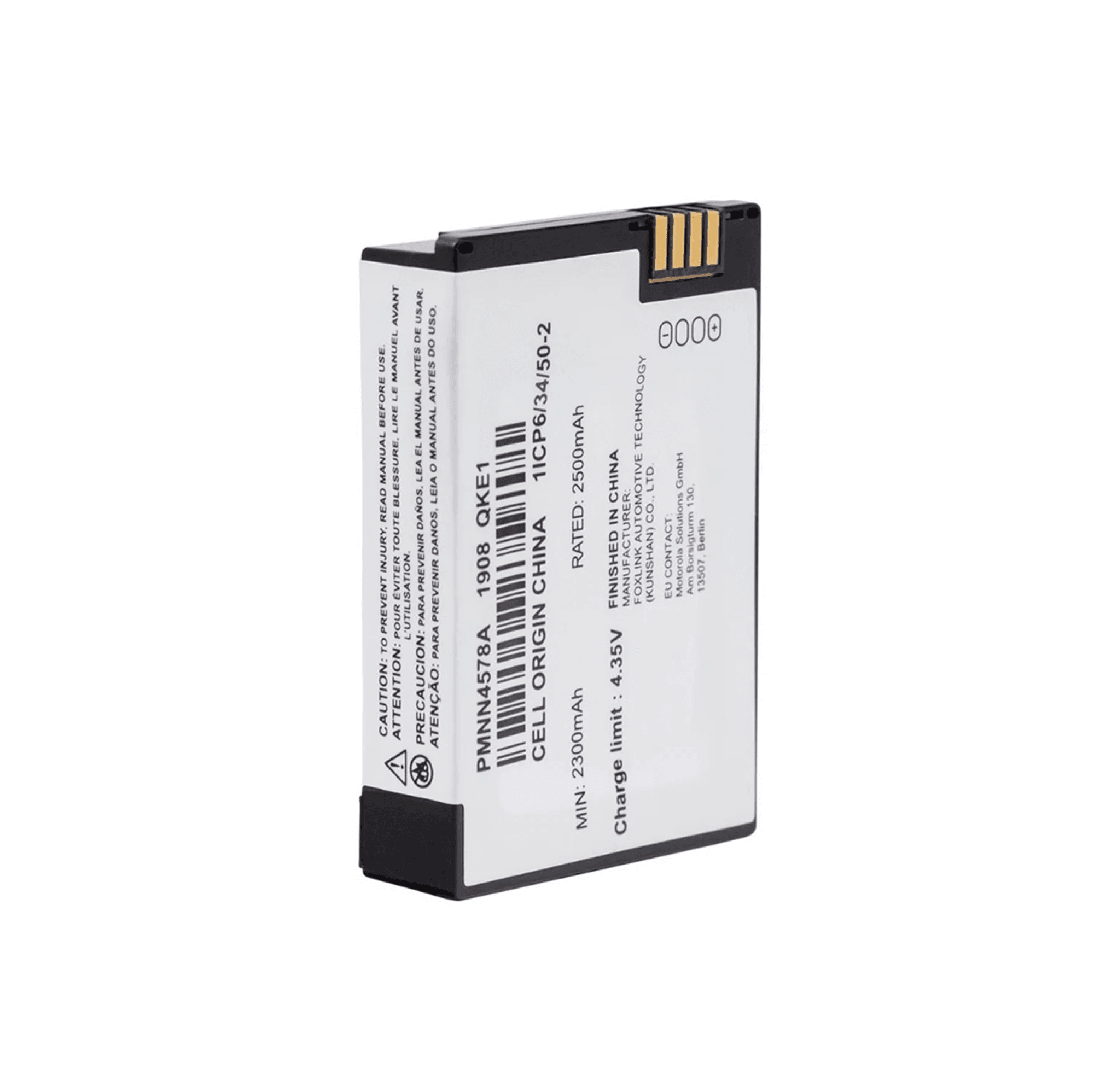

Li-Ion 3.7V (nominal) 2500 mAh (PMNN4578)
Battery life (5/5/90 duty cycle)
Up to 18 hours
Ports & connectors
Micro USB port (charging and programming), audio accessory jack (SL series compatible)
Digital vocoder type
OPUS
Device management
Over-The-Air (OTA) remote management via browser, WAVE PTX portal / WAVE PTX Dispatch
Package contents

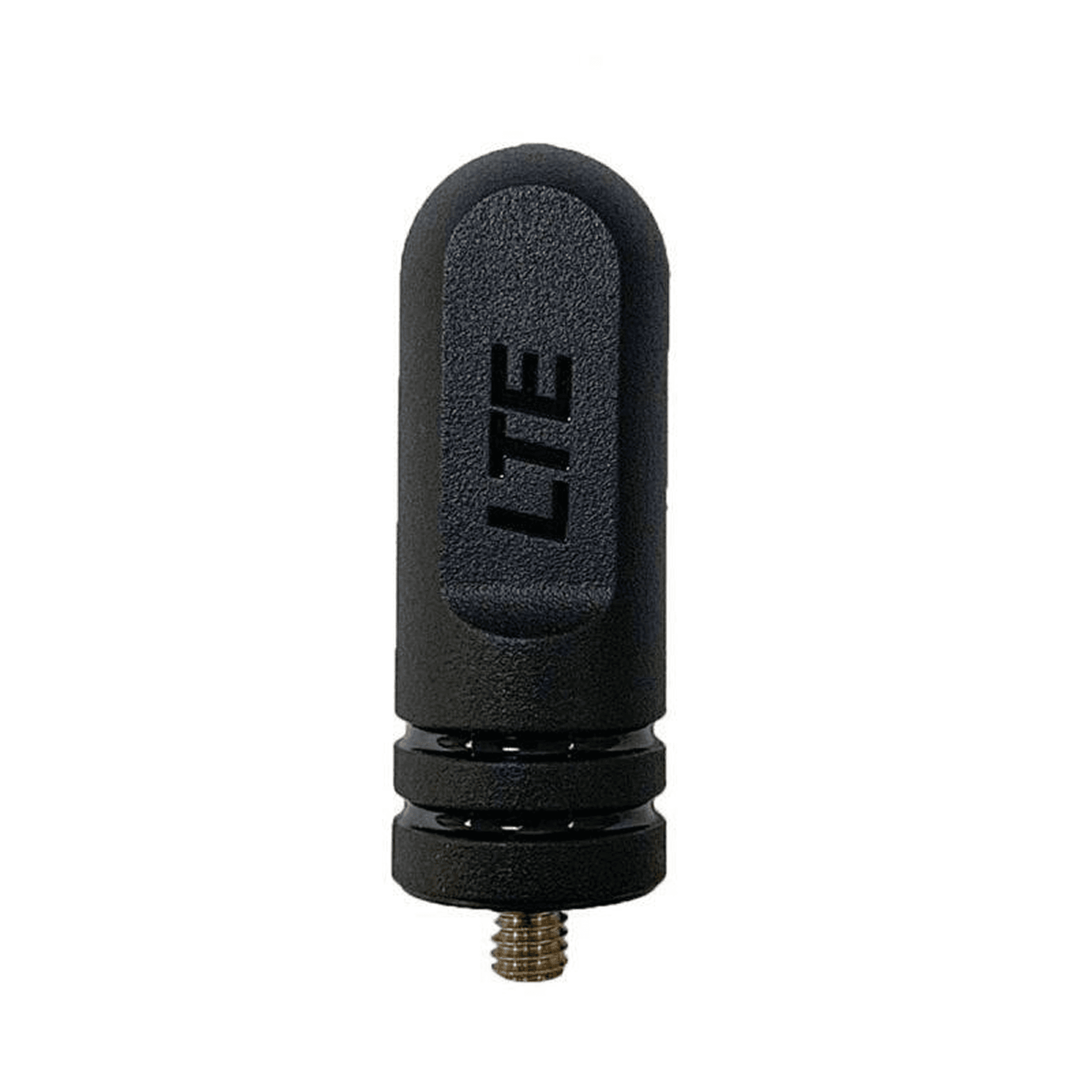

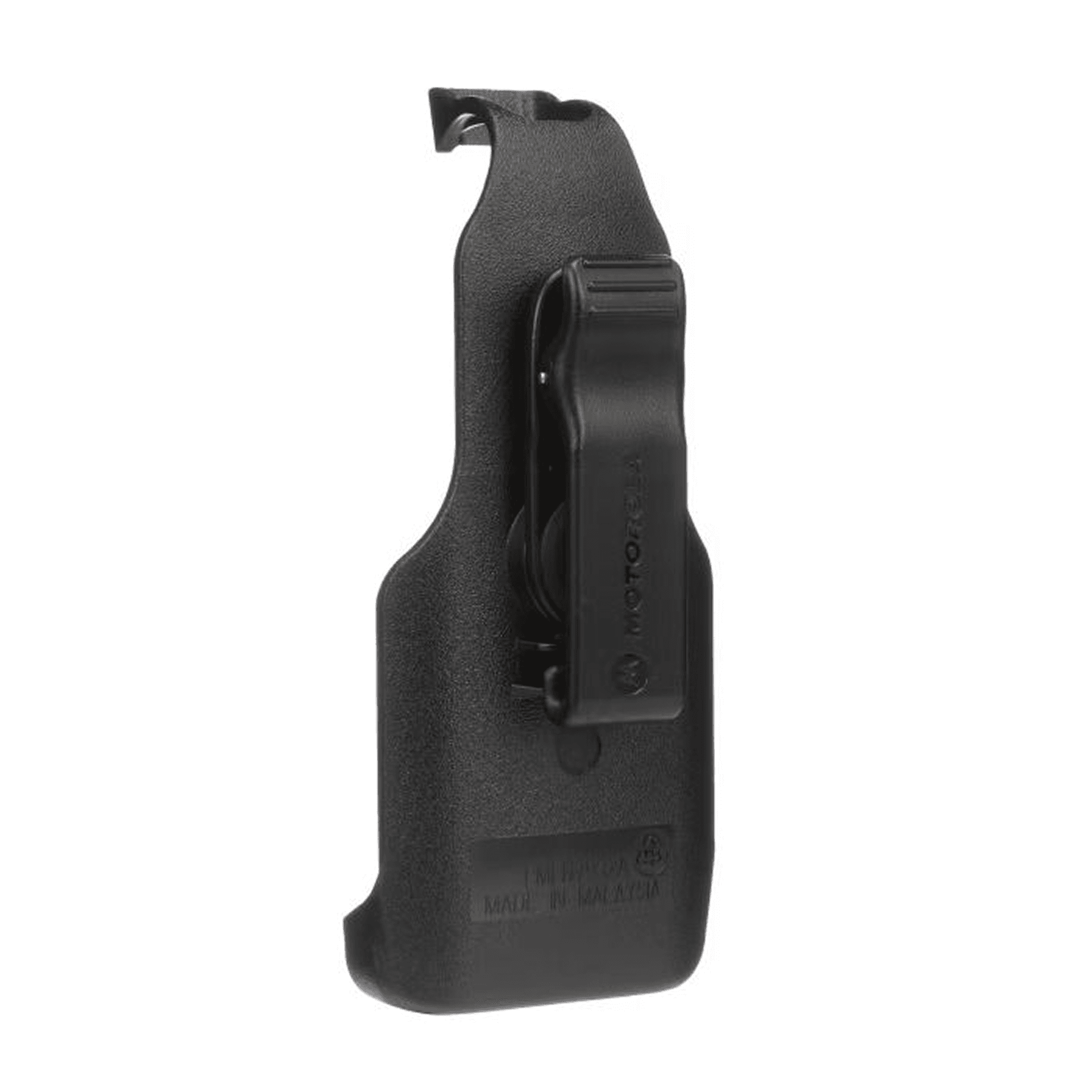

1 x TLK 100 portable radio with pre-installed SIM 1 x Li-Ion 2500 mAh battery (PMNN4578) 1 x Stubby LTE antenna (HKAN4003) 1 x Carry holster with swivel belt clip (PMLN7932)
