Product ID: REDBOX 2K

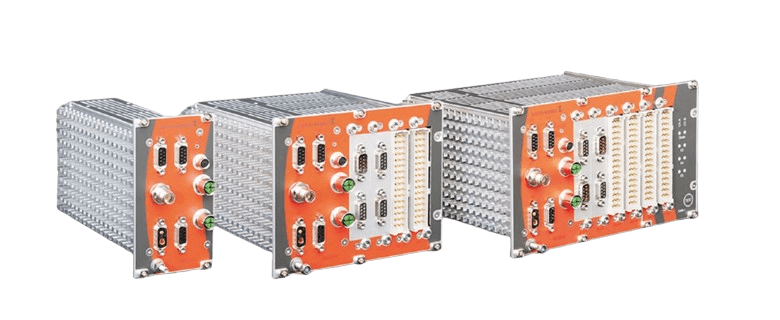

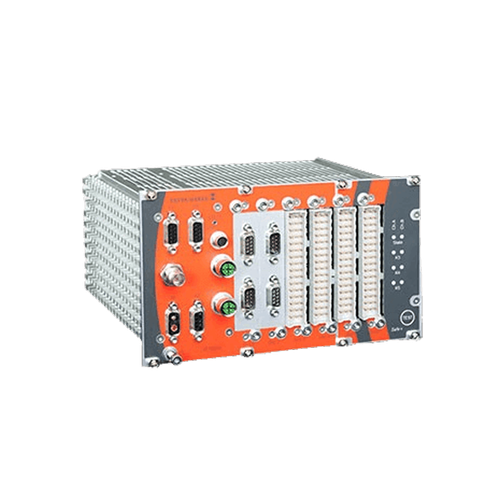

The DEUTA REDBOX 2K is a versatile train data recorder platform housed in a compact 19" cassette, designed to record data from various train safety systems such as ETCS. The device features flexible expansion options including vehicle buses, I/O cards, PMU protected memory, and a Safe+ safety module up to SIL4.
• Product description
Whatever area of operation you are planning for your DEUTA REDBOX® 2K, the basic equipment is identical: A uniform platform for all REDBOX recorder variants. Consistently developed, produced, tested and qualified by DEUTA staff, actively accompanied by our obsolescence management and our in-house board production.
Whether you plan to use your DEUTA REDBOX® 2K as a data logger or as a multifunctional recorder within a complex communication structure: The DEUTA REDBOX® 2K is equipped for all application scenarios. DEUTA configures the right REDBOX for any area of application – quickly and flexibly
Flexibility through standardisation:
Compact 19” hardware design
Future-proof performance through multiple vehicle bus system and I/O expansion
More flexibility through numerous in- and outputs
Can be used to record data from various train safety systems, e.g. ETCS
Can be flexibly used for all application areas in railway traffic – from streetcars to high-speed trains
GPS
Optional Safe+ module up to SIL4
Optional protected memory storage for legal data
• Specification
Rated Operating Voltage
24 do 110 V DC
Power Consumption
Max. 30 W
Protection Category
IP20
Operating Temperature Range
-25 °C to +70 °C
Storage Temperature Range
-40 °C to +85 °C
Housing Form Factor
19" cassette (3U height)

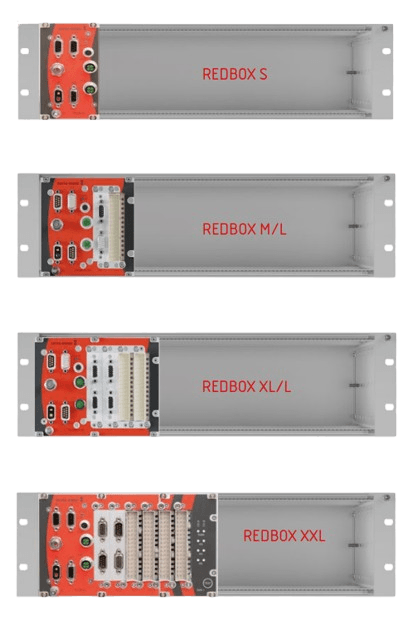

REDBOX S Width
14 HP (no expansion cards)
REDBOX M/L Width
32 HP (up to 4 expansion cards)
REDBOX XL/L Width
44 HP (up to 3 expansion cards & Safe+ module)
Housing Depth
171 mm (without plugs and mating plugs)
Device Weight
1 to 3 kg (depending on variant)
Internal Storage Medium
MicroSD card with 16 GB available storage
Optional Removable Memory Card
Tool-free removal via front plate for data archival
Optional Removable Solid State Disk
For video data storage
Protected Memory Unit PMU (Option)
PMU22, PMU23, PMU24 or PMU25/1 via USB 2.0
Parameter Retention
CodePlug feature for retaining vehicle data during replacement
Diagnostic Interface
Gbit-Ethernet
Service Interface
Gbit-Ethernet, USB 2.0
Vehicle Bus Interfaces
MVB (standard), optional: Gbit-Ethernet, CAN, Profibus, RS485, RS422, IBIS, LZB
Synchronization & GPS
GPS receiver via TNC socket (configurable active/passive antenna)
Real-Time Clock (RTC)
RRTC with TCXO (2 min/year accuracy)
User Interface
Internal web server for vehicle data entry and process values
Analogue Outputs
Voltage (0-10 V) or current (0/4-20 mA)
Analogue Inputs
Voltage (+10 V) or current (0/4-20 mA)
Digital Outputs
Open Collector transistor output (max. 100 mA)
Digital Inputs
High level +12 to +154 V DC
Frequency Inputs (Digital Sources)
Rectangle input, fmax = 10 kHz, Imin 2 mA
Frequency Inputs (AC Encoders)
Suitable for 20 V / 80 V encoders
Safe+ Module
Safety functions up to SIL4
MVB-Master
Optional MVB Master expansion card
Applied Standards
EN 50155, EN 50121-3-2, EN 45545-2, EN 50126, EN 50128, EN 50129
