Product ID: SLR 1000

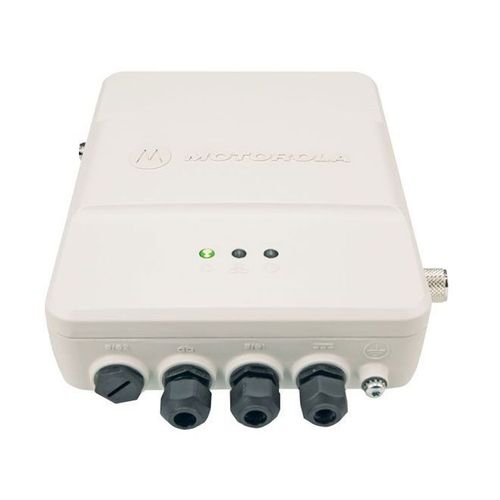

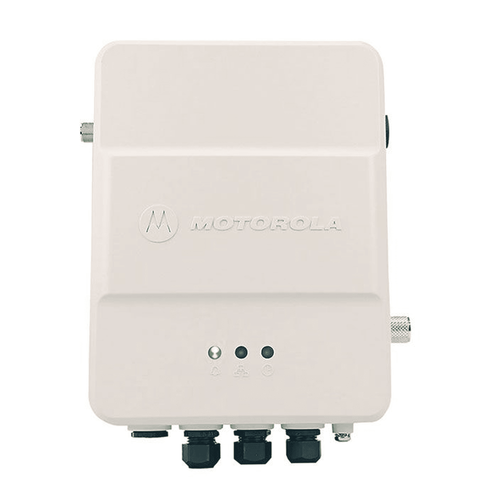

The MOTOTRBO™ SLR 1000 is a professional, compact radio repeater engineered to instantly extend range and eliminate dead spots in communication networks. Featuring an IP65-rated weatherproof enclosure and a fanless convection-cooling design, it allows easy indoor and outdoor mounting (on walls, poles, or in tunnels) without requiring HVAC climate control infrastructure. Delivers 1–10 W RF output power at 100% continuous duty cycle, supports 64 channels, and operates in conventional as well as trunked systems (DMR Tier II & III).
Product features:
Compact IP65 weatherproof construction for reliable operation in severe environments
Fanless convection cooling for silent operation and zero mounting restrictions
Versatile installation possibilities across indoor and outdoor spaces (walls, poles, tunnels)
Full support for DMR Tier II/III digital trunking protocols and analog legacy systems
Low power consumption architecture minimizing operational energy costs and TCO • Product description
The Motorola SLR 1000 redefines radio repeater deployment by eliminating the constraints of traditional base stations. With its compact footprint and IP65 dust and water protection, it withstands rain, moisture, and dust, enabling direct mounting in challenging locations such as underground parking garages, subway tunnels, or outdoor poles. The fanless design removes noisy moving parts and minimizes dust intake, reducing maintenance overheads. Highly energy-efficient, the SLR 1000 reduces power demands and overall total cost of ownership (TCO).
The SLR 1000 adapts seamlessly as organizational needs expand. Ideal for sectors including:
Campuses & Large Facilities: universities, corporate complexes, business parks
Underground Infrastructure: tunnels, subterranean parking, mining, utility shafts
Manufacturing & Logistics: industrial plants, distribution hubs, fulfillment centers
Events & Security Management: outdoor event venues, property security, emergency services
• Specification
SKU / Catalog Number
SLR 1000
Device Type
Fixed / Portable Repeater (wall/pole mounting)
Dimensions (H x W x D)
279.4 x 228.6 x 101.6 mm (11 x 9 x 4 in)
Weight
4.54 kg (10 lbs)
Frequency Range
VHF: 136-174 MHz UHF: 400-527 MHz
RF Output Power
1–10 W
Max Duty Cycle
100%
Channel Spacing
12,5 / 20 / 25 kHz
Frequency Stability
0,5 ppm
Frequency Generation
Synthesized
Channel Capacity
64
Digital Vocoder
AMBE+2™
Modes of Operation
Half Duplex / Duplex
Ingress Protection
IP65
Operating Temperature Range
-30°C to +60°C (-22°F to +140°F)
Standards & Certifications
ETSI 300-086, ETSI 300-113, TIA603D, Oznaczenie CE, RoHS2, Certyfikat UL, ETSI TS 102 361-1, -2, -3 (DMR Tier II i III)
FCC Type Acceptance
VHF: ABZ99FT3096 UHF: ABZ99FT4100
FCC Emission Designators
11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W, 7K60FXW
IC Description
VHF: 109AB-99FT3096 UHF: 109AB-99FT4100
Input Voltage (DC)
12 V (11,0–15,5 V)
Current Drain (Standby)
0.7 A (0.63 A typical)
Current Drain (Transmitting at 10 W)
3 A (typical)
Input Power Modes
DC only, Optional AC/DC Power Supply Available
Connectors

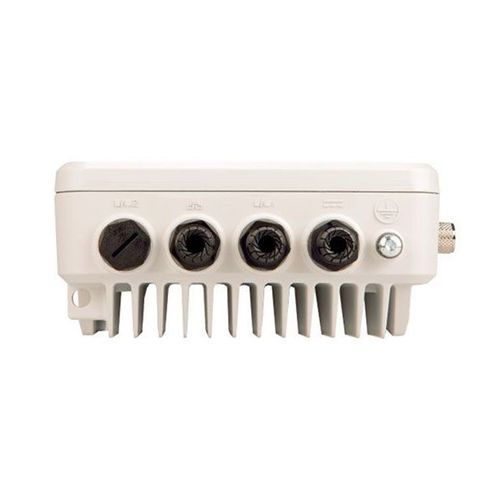

Connectivity, Left Side: Tx (N female) Connectivity, Right Side: Rx (N female) Connectivity, Bottom: USB B Receptacle, 1x Ethernet, RJ45 Accessory Connector, DC Input
Audio Input Level
Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD
Audio Output Level
Unbalanced: Adjustable, 330 mV rms nominal @ 60% RSD
Sensitivity (12 dB SINAD)
0.3 µV (0.22 µV typical)
Sensitivity (5% BER)
0.25 µV (0.18 µV typical)
Selectivity TIA603D (12.5 / 20 / 25 kHz)
VHF: 55 / 80 / 80 dB UHF: 55 / 83 / 83 d
Selectivity TIA603 (12.5 / 20 / 25 kHz)
VHF: 68 / 80 / 80 dB UHF: 68 / 83 / 83 dB
Intermodulation Rejection (TIA603D / ETSI)
80 / 70 dB (82 / 73 dB typical)
Spurious Rejection (TIA603D / ETSI)
85 / 75 dB (95 / 90 dB typical)
Audio Distortion
< 3% (< 1% typical)
Hum and Noise (12.5 / 20 / 25 kHz)
-45 / -50 / -50 dB
Blocking
-57 dBm
Intermodulation Attenuation
40 dB
Adjacent Channel Power TIA603D (12.5 / 20 / 25 kHz)
62 / 78 / 78 dB
Adjacent Channel Power ETSI (12.5 / 20 / 25 kHz)
62 / 78 / 78 dB
Modulation Fidelity 4FSK
FSK Error: 5% FSK Magnitude: 1%
Conducted Spurious Emissions
-36 dBm dla < 1 GHz -30 dBm dla > 1 GHz
Audio Response
TIA603D / ETSI
Audio Distortion
< 1%
Hum and Noise (12.5 / 20 / 25 kHz)
-45 / -50 / -50 dB
Rated System Deviation (12.5 / 20 / 25 kHz)
±2,5 / ±5,0 / ±5,0 kHz
Supported System Types
Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus, Analogue Conventional, Digital Voting, MPT 1327
Package Contents
1 x MOTOTRBO SLR 1000 Repeater 1 x SAE1074 Wall Mount Bracket (BR000143A01) 1 x DC Power Cable 1 x User Manual
UHF Antennas
HKAE4003 (400-460 MHz) HKAE4004 (440-495 MHz) HKAE4005 (490-530 MHz)
VHF Antennas
HKAD4003 (136-154 MHz) HKAD4004 (146-164 MHz) HKAD4005 (160-174 MHz
UHF Duplexers

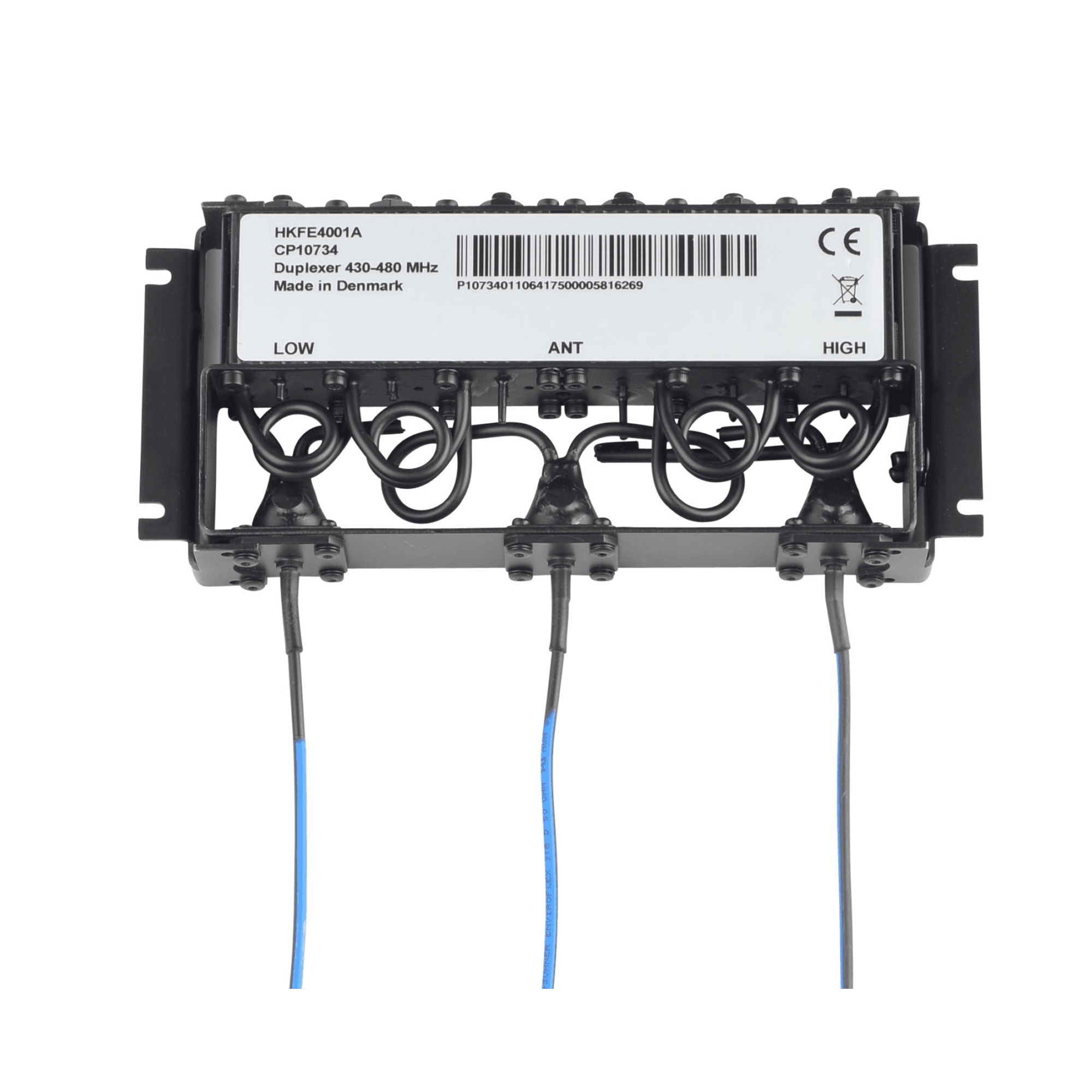

HKFE4000 (Duplexer, 400-430 MHz, 5-6.5 MHz Tx/Rx spacing) HKFE4001 (Duplexer, 430-480 MHz, 5-6.5 MHz Tx/Rx spacing) HKFE4002 (Duplexer, 480-527 MHz, 5-6.5 MHz Tx/Rx spacing) HKFE4003 (Duplexer, 400-430 MHz, 10 MHz Tx/Rx spacing) HKFE4004 (Duplexer, 430-480 MHz, 10 MHz Tx/Rx spacing) HKFE4005 (Duplexer, 480-527 MHz, 10 MHz Tx/Rx spacing)

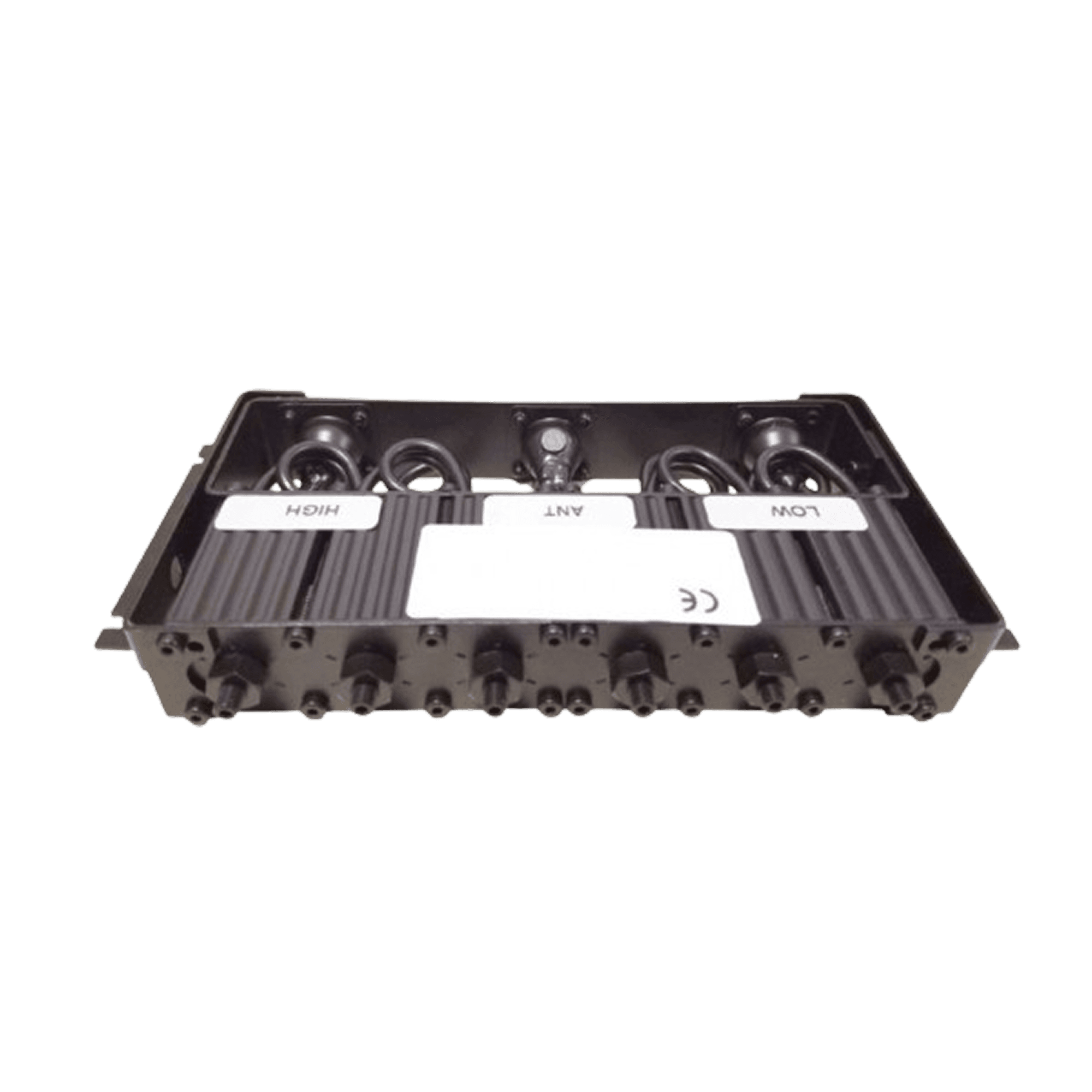

VHF Duplexers
HKFD1000 (Duplexer, 136-156 MHz, 4-6 MHz Tx/Rx spacing) HKFD1001 (Duplexer, 154-174 MHz, 4-6 MHz Tx/Rx spacing) HKFD1002 (Duplexer, 136-156 MHz, 6-10 MHz Tx/Rx spacing) HKFD1003 (Duplexer, 154-174 MHz, 6-10 MHz Tx/Rx spacing)
Antenna Switch
PMLN7263 (Extended range antenna switch kit)
Power Adaptors

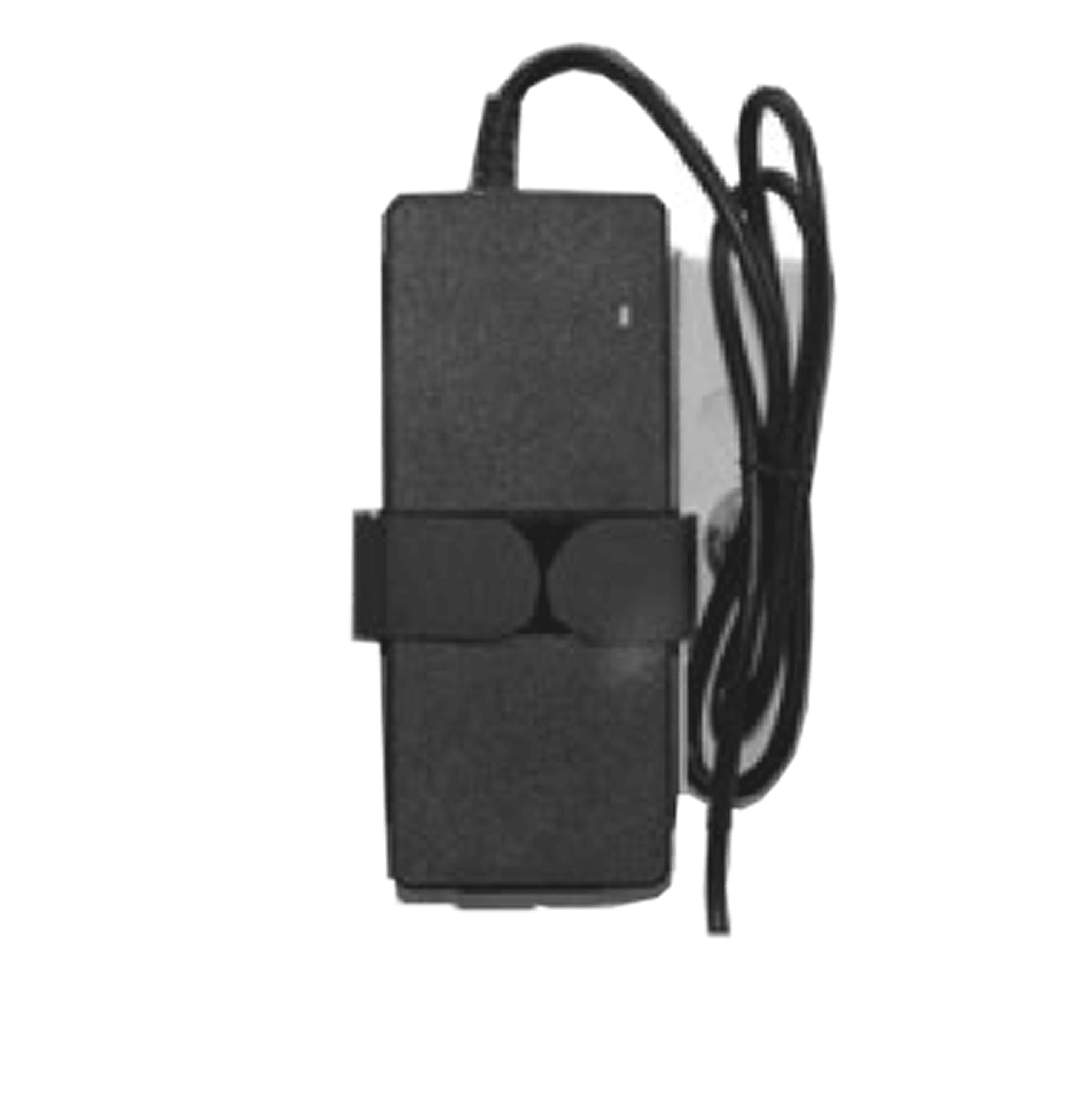

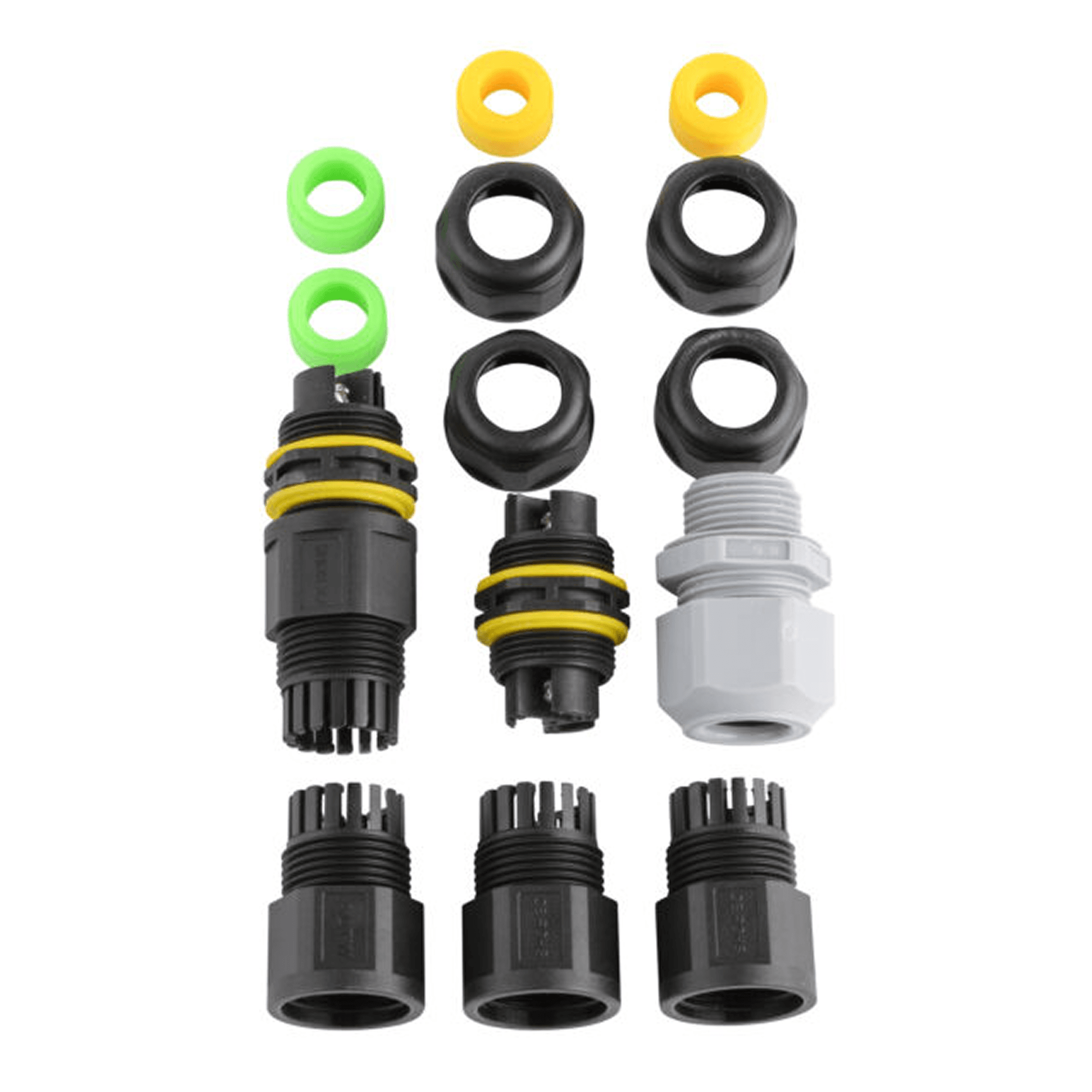

PMLN7771 (SLR 1000 power adaptor kit for outdoor applications) PMLN7773 (SLR 1000 power adaptor kit for indoor applications)
Mounting Brackets

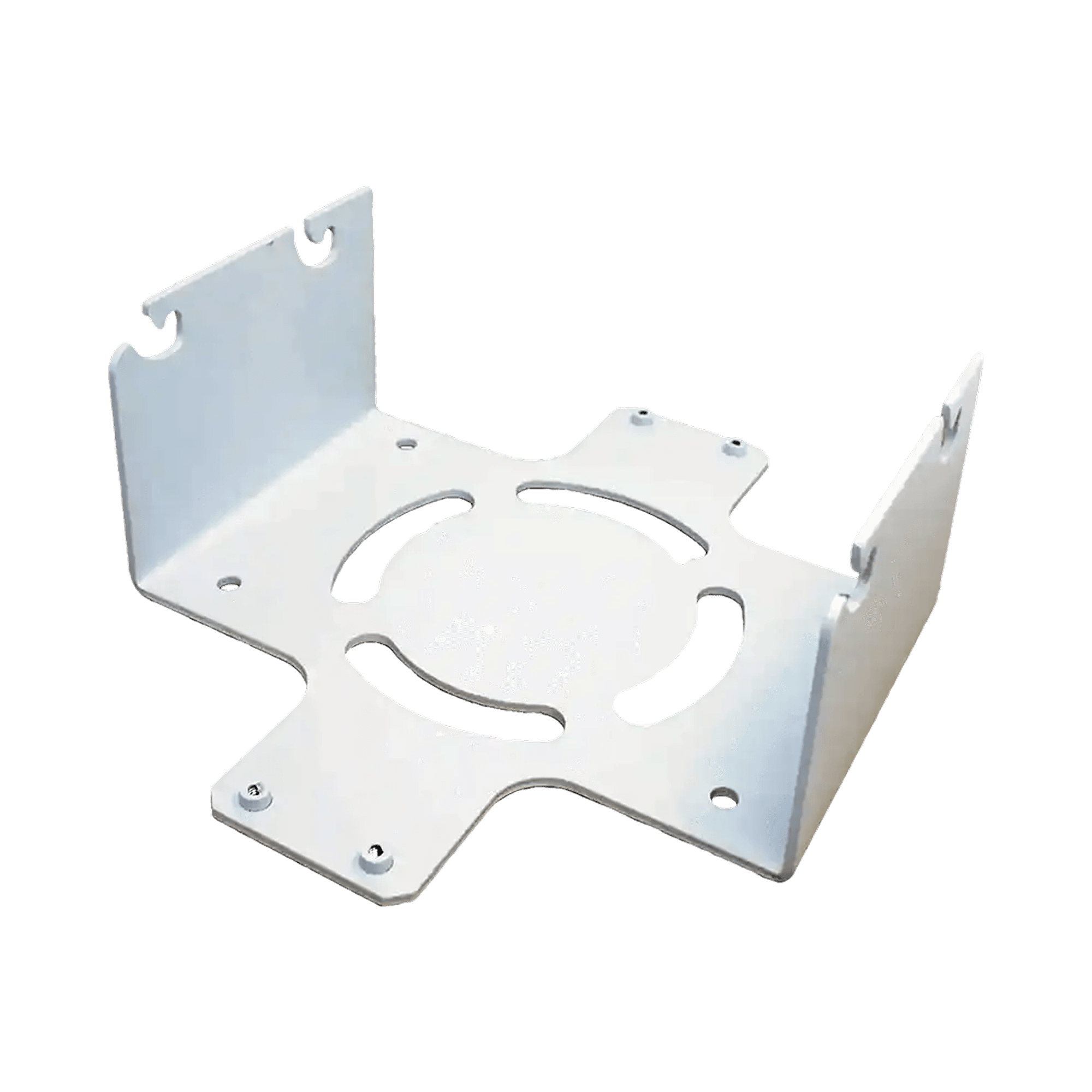

BR000143A01 (Wall mount bracket SAE1074) PMLN7213 (Pole mount kit)
Programming Cables
30009477001 (Repeater Programming Cable USB-A to USB-B)
