Product ID: DM4600e

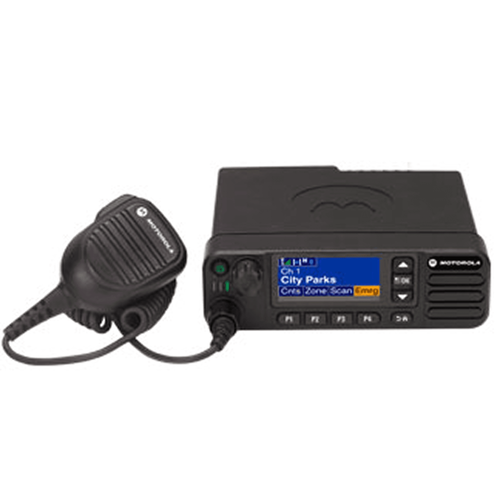

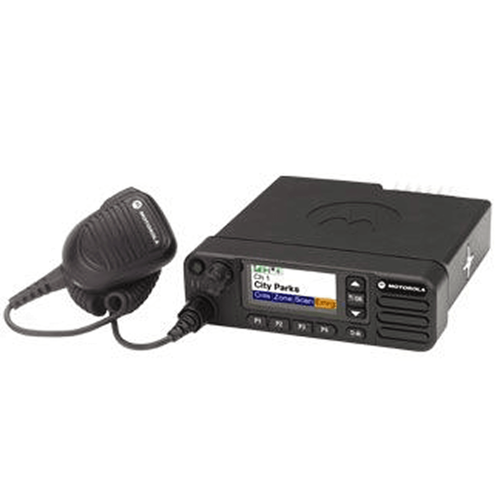

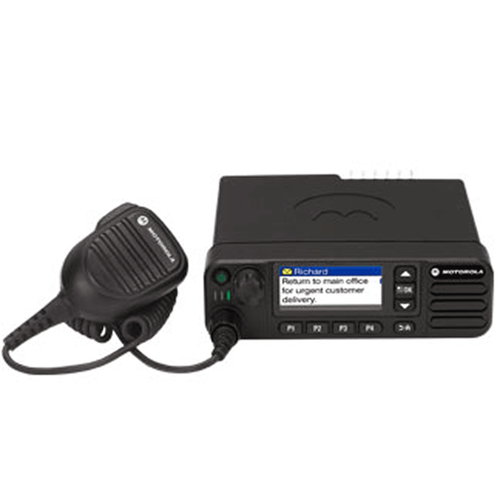

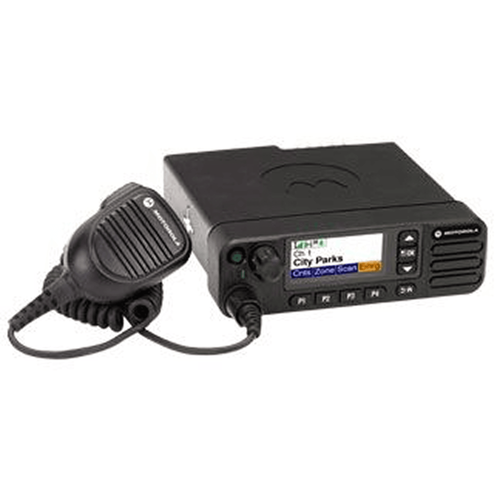

The MOTOTRBO DM4600e mobile radio is a high-performance mobile transceiver featuring a 4-line alphanumeric display, 1000-channel capacity, integrated Wi-Fi, and full support for DMR Tier II and Tier III systems.
Product features:
DMR – analogue and digital operation with support for DMR Tier II and Tier III trunked systems
High-resolution alphanumeric display supporting up to 1000 communication channels
Integrated Wi-Fi capability for over-the-air software management (OTAP)
IMPRES™ Audio suite with Intelligent Audio, Text-to-Speech, and noise cancellation
Environmental certification to IP54 and compliance with MIL-STD 810 specifications • Product description
The MOTOTRBO DM4600e is engineered for mobile professionals who require comprehensive data visibility and control. Featuring a clear 4-line alphanumeric screen, it enables drivers and dispatchers to effortlessly navigate contact lists, text messages, work order tickets, and device status menus. With an expanded 1000-channel capacity, it serves as an ideal communication terminal for complex multi-group operations.
Powered by IMPRES™ audio innovation and Intelligent Audio algorithms, the DM4600e dynamically adjusts speaker output to override harsh cabin noise. The integrated Text-to-Speech engine audibly reads out incoming text updates, helping drivers stay informed without taking their eyes off the road. Built-in Wi-Fi enables over-the-air firmware updates, streamlining fleet maintenance without removing vehicles from service.
Worker protection is enhanced through Lone Worker monitoring, emergency alerts, and Transmit Interrupt channel prioritization. The DM4600e integrates across all MOTOTRBO network architectures, including Conventional, IP Site Connect, Capacity Plus, and Capacity Max trunking. Built to last, it complies with IP54 ingress protection and MIL-STD 810 military specifications.
The MOTOTRBO DM4600e is designed for dispatch desks, public transit networks, railways, mining, heavy logistics, and public safety organizations needing an advanced mobile or base station radio.
Dispatch desks & base stations: full text messaging and group management via a high-capacity alphanumeric display.
Public transport & rail: efficient work order handling and text readout while on the move.
Industrial & mining operations: reliable voice communication across wide-area DMR Tier III trunked networks.
• Specification
Display Type
Alphanumeric
Channel Capacity
1000
Dimensions (H x W x D)
53 x 175 x 206 mm
Weight
1,8 kg
Nominal Power Supply
12 V
Current Drain – Standby
0.8 A max
Current Drain – Receive
2 A max
Current Drain – Transmit (Low Power)
11 A max
Current Drain – Transmit (High Power)
14.5 A max
Channel Spacing
12,5 kHz / 20 kHz / 25 kHz
Frequency Stability
± 0,5 ppm
Digital Vocoder Type
AMBE+2™
Digital Protocol (ETSI standards)
ETSI TS 102 361-1, -2, -3, -4 (DMR Tier II, DMR Tier III)
Wi-Fi Connectivity
IEEE 802.11b/g/n (WPA, WPA2, WEP)
Frequency Range
VHF: 136–174 MHz 300 MHz: 300–360 MHz / 350–400 MHz UHF Band 1: 403–470 MHz UHF Band 2: 450–527 MHz
RF Output Power (low / high)
VHF: 1–25 W / 25–45 W 300 MHz: 1–40 W UHF Band 1: 1–25 W / 25–45 W UHF Band 2: 1–40 W
Conducted / Radiated Spurious Emissions (TIA603D)
< 1 GHz: -36 dBm > 1 GHz: -30 dBm
Adjacent Channel Power
12.5 kHz channel: 60 dB 20/25 kHz channel: 70 dB
Analogue Sensitivity (12 dB SINAD)
0,18 uV
Digital Sensitivity (5% BER)
0,16 uV
Intermodulation (TIA603D)
VHF: 78 dB UHF1, UHF2, 300 MHz: 75 dB
Adjacent Channel Selectivity (TIA603A-1T / TIA603D-2T)
12.5 kHz channel: 60 dB / 45 dB 20/25 kHz channel: 70 dB / 70 dB
Spurious Rejection (TIA603E)
70 dB
Rated Audio
Internal Speaker: 3 W External Speaker (8 Ω): 7.5 W External Speaker (4 Ω): 13 W
Audio Distortion @ Rated Audio
3%
Hum and Noise
12.5 kHz channel: -40 dB 20/25 kHz channel: -45 dB
Conducted Spurious Emissions (TIA603D)
-57 dBm
Military Standards MIL-STD 810C/D/E/F/G/H
Low/high pressure, low/high temp, thermal shock, solar radiation, rain, humidity, salt fog, dust, sand, vibration, shock
Operating Temperature
-30°C to +60°C
Storage Temperature
-40°C to +85°C
Ingress Protection (dust and water)
IEC 60529 - IP54
Electrostatic Discharge
IEC 61000-4-2 level 4
