Product ID: DEUTA DRS05/3S1

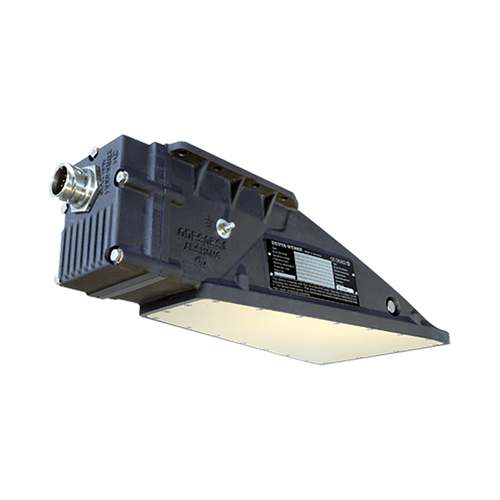

The DEUTA DRS05/3S1 is a contactless two-channel Doppler speed sensor equipped with an integrated protective hood to resist stone impacts and harsh winter conditions. Featuring a dual antenna array and an acceleration sensor, it ensures continuous speed measurements from 0.2 to 600 km/h for high-speed rail and metro operations.
Product features:
Integrated protective cover against impact of stones
Suitable for ETCS, CBTC, high-speed trains, and metro vehicles
High availability under severe winter conditions
Minimum life cycle costs (LCC) due to wear-free non-contact operation• Product description
At the DRS05/3S1, an integrated protective hood prolongs the durability of the radar sensors when they are hit by stones and extends availability in winter conditions. Such housing is specially recommended for high-speed trains and metro vehicles. Under winter conditions, the integrated protective hood together with a redundancy concept basing on Doppler signal amplitudes and taking into account a spectral evaluation assures high availability.
The DRS05/3S1 radar sensors measure speed and distance contactless and slip-free using the Doppler principle. The integrated acceleration sensor supports speed measurement and minimises dynamic deviations while suppressing interference signals at a standstill. In combination with the DEUTA SmaRT App, inclination measurement and calibration become effortless.
• Specification
Working principle
Two-channel Doppler speed sensor with dual antenna system
Determinable speed range
0.2 km/h up to max. 600 km/h
Measurement noise (1σ)
< 0.4 km/h (v < 100 km/h) / < 0.4% (v > 100 km/h)
Uncertainty due to underground variation
< 1% typical
Path measurement reproducibility (1σ)
< 0.1% typical from 1,000 m distance
Forward/backward recognition
Yes
Power supply
15 to 150 VDC (extended-range power, galvanically isolated, battery potential permitted)
Power consumption
Max. 10 W
Digital interface
RS485 2-wire bus, unidirectional, serial
Analog interface
Pulse output (open collector)
Inverse polarity protection
Yes
Short-circuit proof
Yes
Distance to reflection surface
Approx. 200 mm to 1,000 mm (depending on application)
Housing material
Integrated protective cover against impact of stones
Dimensions
Approx. 481 mm x 214 mm x 140 mm (l x w x h, without plug connector and cable)
Weight
Approx. 4.7 kg (without plug and cable)
Protection class
IP66 / IP67 / IP69 (with plug and cable)
Operating temperature
-40 °C to +70 °C
