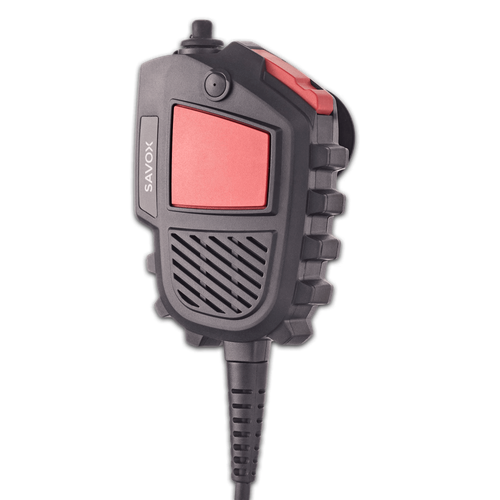

Product ID: C-C550
Remote speaker microphone and PTT unit for versatile communications in harsh fireground environments.
Product features:
Two PTT buttons on top and front
Microphone and speaker
Connector for Savox headset
Compatible with Dräger's or MSA's mask communication units
Emergency button option available in certain models • Product description
The design and construction of the Savox C-C550 prioritize both functionality and durability, ensuring reliable communication in the most challenging scenarios. It enables clear communication with or without Savox headset. It can also be used with Dräger's or MSA's mask communication units.
Additionally, in some C-C550 models, there is an orange button to activate the emergency function from the radio for added safety.
• Specification
Headset support
Savox headsets with quick-release 4-pole connector (QR4) and with Savox headset wiring
Headset connector
Quick-release 4-pole female connector (QR4)
Radio connector cable
Fixed coiled cable
Dimensions (l/h/w)
115mm/79mm/37mm (without the clip)
Weight
Approx. 170g without radio connector cable
Fixing options
Clothing clip, rotating 180°
Material
Thermoplastics based polyamide (PA66)
Color
PTT buttons: red, housing: black
Emergency button option
Available in certain models
Supply voltage
3.0...10.0VDC (0VDC for dynamic microphone)
Current drain
~0,5mA @ 6VDC
Type
Omnidirectional
Sensitivity
-39dB ± 2dB
Power rating
Impedance max. 2.2 Kohm
Impedance
8ohm ± 15% at 1Khz
Audio output
Max. 113dB ±3dB at 1 Khz
Power rating
2W/2.5W (nominal/max)
Distortion
Typically less than 5%
IP rating
IP66/IP67
Drop resistance
Drop to flat, hard surface from 1 m
Operation temperature
-40°C...+85°C
Storage temperature
-25°C...+70°C
Button switch component lifecycle
500.000 operations
Flammability rating
All materials according to UL94-V0
Dust and sand 510.5
Procedure I & II
Blowing rain 506.5
Procedure I
Contamination by fluid 504.1
Procedure II
Immersion 512.5
Procedure I
Mechanical shock, bump 516.6
Procedure I
Mechanical shock 516.5
Procedure I
Basic hot 501.5
Procedure II
Cold 502.5
Procedure II
Vibration 514.6
Procedure I, category 24
Salt & fog 509.5
Compliant
Hot storage 501.5
Procedure I
Cold storage 502.5
Procedure I
Damp heat, steady 507.5
Procedure I
Temperature shock 503.5
Procedure I-A
Transit drop 516.6
Procedure IV
Solar radiation 505.5
Procedure II, cycle A1
ROHS
2011/65/EU + (EU) 2015/863
REACH
1907/2006
EMC
2014/30/EU
